Description

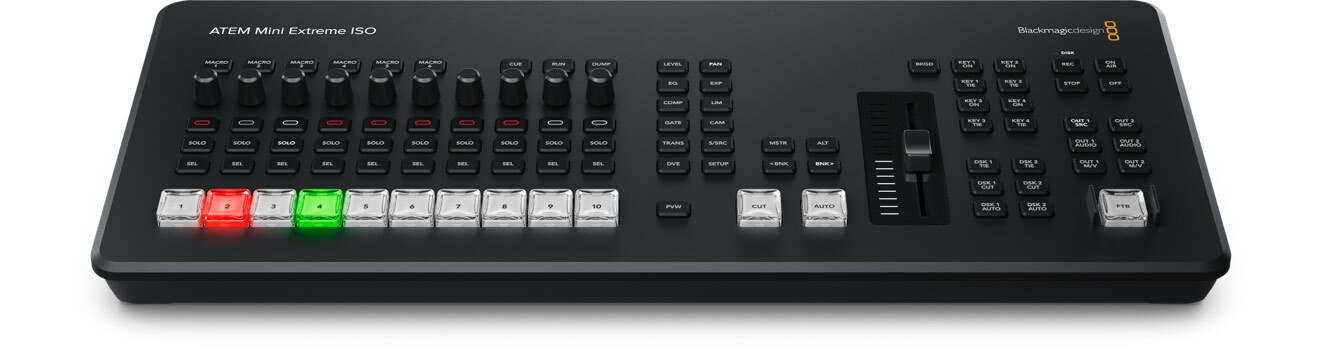

ATEM Mini Extreme ISO G2 is a powerful yet compact live switcher for building a high-end broadcast studio. Get an expanded professional style control panel with built in streaming, 8 standards converted HDMI inputs, 3 independent HDMI outputs, built in streaming engine, multi-view, CFexpress and Thunderbolt for record/playback. There is also 10G Ethernet for fast network storage access, XLR audio inputs, USB webcam, DVE, chroma key, media player and ISO recording of all 8 video inputs.
Connections
Total Video Inputs
9
Total Outputs
4
Total Aux Outputs
4
SDI Rates
1.5G, 3G
HDMI Video Inputs
8 x HDMI type A, 10-bit HD switchable.
2 channel embedded audio.
HDMI Video Outputs
3
HDMI Program Outputs
3
Total Audio Inputs
2 x XLR Combo with phantom power.
1 x BNC 32 Ch MADI digital audio.
Total Audio Outputs
1 x 6.35mm headphone jack
Timecode Connection
None
Reference Input
None
Video Input Re-Sync
On all 8 HDMI inputs and remote sources
Frame Rate and Format Converters
On all 8 HDMI inputs and remote sources
Webcam Output
2 x USB-C supporting 720p or 1080p at PGM frame rate.
Total Multi Views
1
Routable to any of the 3 x HDMI outputs, 2 x USB‑C webcam outputs or 1 x Thunderbolt output.
Control Panel Connection
Ethernet. Direct connection between panel and chassis, or via network.
Internal Timecode Generator
Yes
Tally Output
On Blackmagic HDMI and remote cameras.
Ethernet
1 x 1G Ethernet for simple streaming, control panels and internet connection,
1 x 10G Ethernet connection for recording.
Computer Interface
2 x USB Type-C 3.1 Gen 1 for external drive recording, webcam out, software control, software updates and panel connection.
1 x Thunderbolt for fill key video out, video input, ethernet to storage, and power
