Description

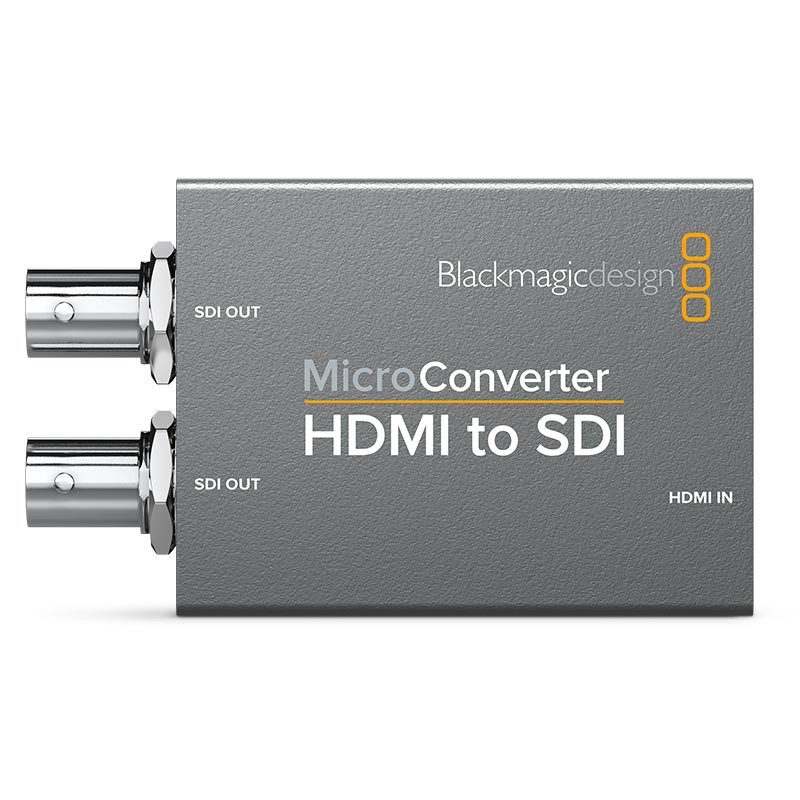

With the Blackmagic Design HDMI to SDI Micro Converter you can convert a single high-definition HDMI signal into two 3G-SDI signals for ensuring workflow compatibility in professional video environments. Input signals are detected automatically, so the converter knows the resolution and format to output.
I/O
1 x HDMI type A input
2 x SD/HD/3G-SDI BNC output
1 x micro-USB
Format Support
1080p24/25/29.97/30/50/59.94
1080i50/59.94/60
720p50/59.94/60
NTSC
PAL
SDI Compliance
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 425M
Color Precision
4:2:2
Color Space
YUV and RGB
OS Support
Mac OS X 10.10, 10.11 or later
Windows 8.1, 10
Power
Power input: 5 VDC via USB Micro-B
Power consumption: 2.0 W
Operational voltage range: 4.4 to 5.25 VDC
Environmental
Operating temperature: 32 to 104°F / 0 to 40°C
Storage temperature: -4 to 140°:F / -20 to 60°C
Relative humidity: 0 to 90% non-condensing
Dimensions
3 x 1.8 x 1″ / 76 x 46 x 25 mm
Weight
5.3 oz / 150 g
