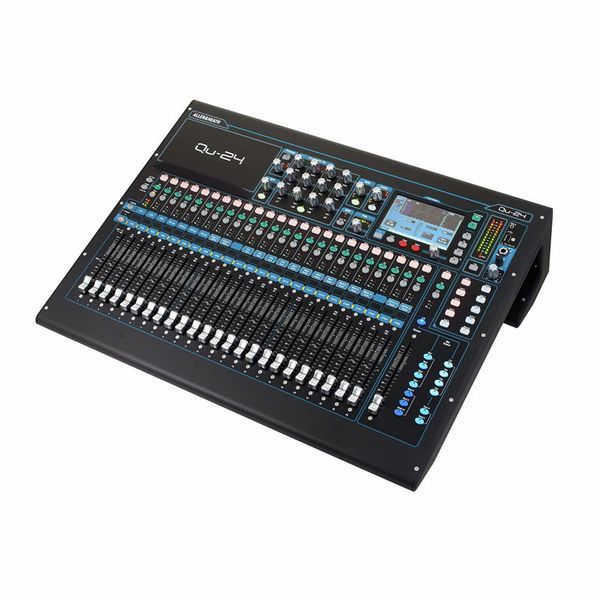

Allen & Heath Qu24 Digital Mixer

Description

24 Mono inputs via XLR or jack with AnalogiQ preamps
3 Stereo inputs via jacks
4 Stereo FX returns
16 Busses
12 Mix outputs: LR, Mono Mix 1-4, Stereo Mix 1-3
AES Digital output
4 FX Engines with iLive FX library
4 Mute groups
Motor fader
Trim, polarity, low cut, gate, insert, 4-band parametric EQ, compressor and delay on all inputs
Insert, 4-band parametric EQ, graphic EQ, compressor and delay for main LR and mono mix outputs
Qu-Drive: Multitrack recording / playback direct to USB drive or hard drive
Touchscreen: 800 x 480 pixels
Built-in signal generator
dSNAKE Remote Audio Port
USB Audio streaming
Compatible with ME Personal Mixing System
DAW MIDI Control
Dimensions: 632 x 471 x 171 mm
Weight: 14 kg
Compatible with Windows and Mac OS
New firmware version 1.9: Pro Factory microphone presets from Audio Technica, Sennheiser and Shure, DAW control for Windows, new QU control app
