Description
At 2.6mm pitch, we are able to achieve full HD resolution with 15 sq/m of wall and 4K with just 60 sq/m.

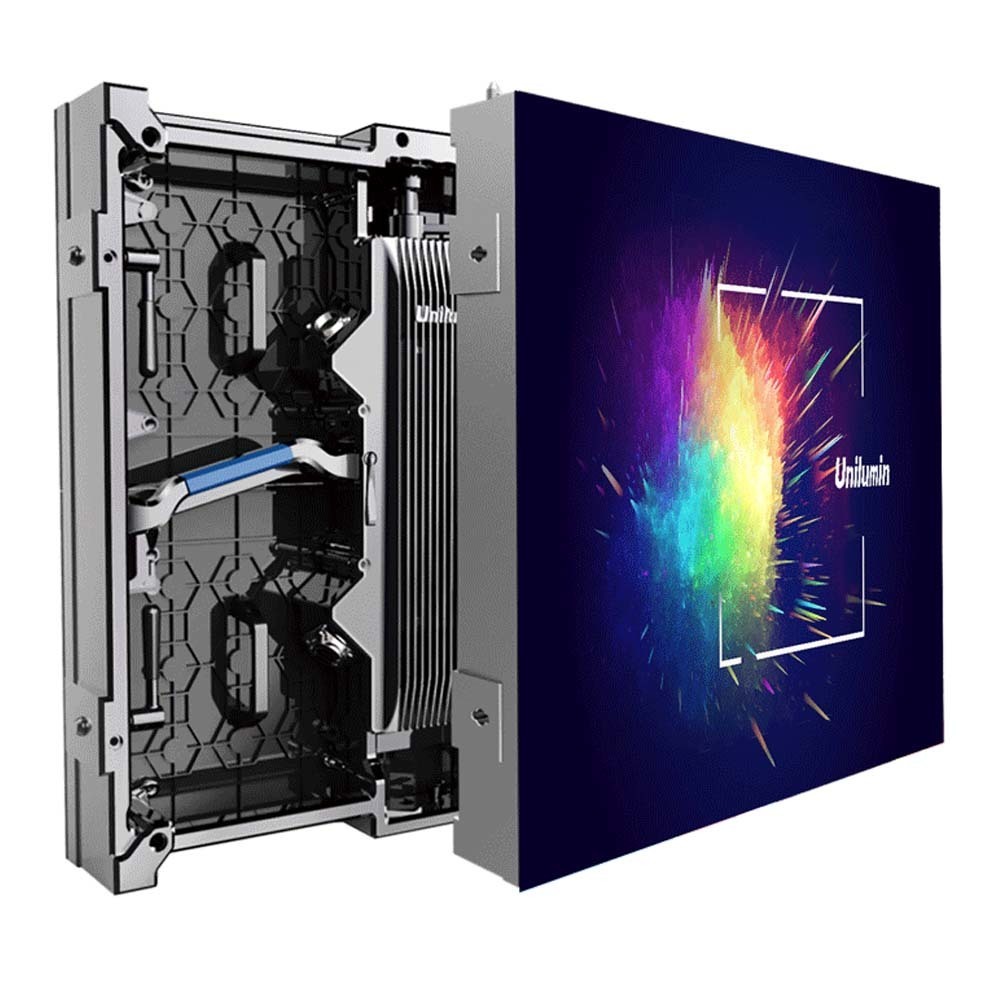

These premium Unilumin UPAD LED panels have been designed for one person to be able to install and disassemble them on site. They feature a handle design and magnets to ensure a smooth build on site.
The magnetic design allows for module servicing from the rear of the panels. The Unilumin UPAD III features a modular design, the power box, receiving card and HUB can easily be replaced on site.
We can create both concave and convex curves in increments from -10 to +5 degrees.
For more creative designs, we also stock 90 degree corner sections.
192×192 pixels per panel
Pixel Density 177,456 pixels/m2
Contrast Ratio 5000:1
Viewing Angle H:140 V 120
Recemmended Viewing Distance >2.6m
Video Frame Rate 50/60Hz
Rate Refresh 3840Hz
Power Supply Source 110~220Vac
Power Consumption (max) 120w per panel
Power Consumption (typical) 40w per panel
Weight 6.3kg per panel
Rigging Flying and Ground Stacking
Curve – Concave and Convex
