Description

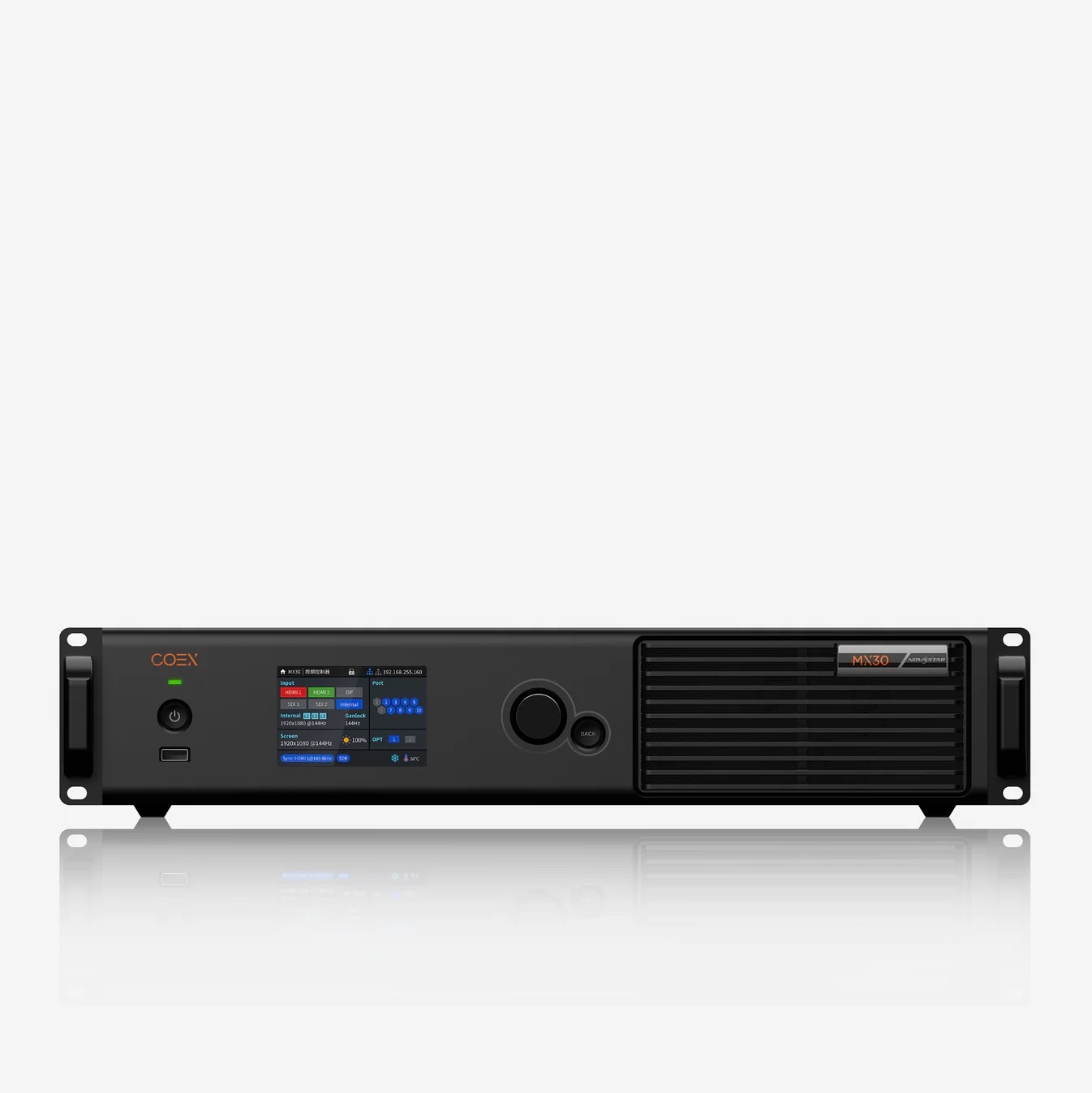

The MX30 is part of NovaStar’s COEX series. This controller integrates video processing and controlling in one device.
In conjunction with NovaStar’s new VMP software (Vision Management Platform), the user is offered simple operation with extensive functions.
Hardware features:
Inputs:
1x HDMI 2.0 (max. 4096×2160@60Hz(forced); min. 800×600@60Hz)
Custom EDID’s: max. width: 8192 (8192×1080@60Hz); max. height: 7680 (1080×7680@60Hz)
1x HDMI 1.4 (max 4096×1080@60Hz(forced); min 800×600@60Hz)
Custom EDID’s: max. width 4096 (4096×1080@60Hz); max. height: 4096 (1080×4096@60Hz)
1x DP1.1 (max. 4096×1080@60Hz (forced), min. 800×600@60Hz)
Custom EDID’s: max width: 4096 (4096×1080@60Hz); max height: 4096(1080×4096@60Hz);
2x 3G-SDI
Supports ST-424(3G), ST-292(HD) & ST-259(SD) video inputs
Outputs:
10x LED-Out (RJ45):
8Bit@60Hz: 659,000 pixels
10Bit@60Hz: 494,000 pixels (with A10s Pro)
1x HDMI 2.0 Loop
1x HDMI 1.4 Loop
1x 3G-SDI Loop
2x OPT-Out (10G)
1x SPDIF (reserved)
Further Features:
LOCK OF GENLOCK
3x Layer
14Ch Color Correction
Full Grayscale Calbration
low latency
integrated network switch for cascading multiple devices
General Specifications:
Supply voltage: 100-240V~, 50/60Hz
max. power consumption: 55w
Dimensions: 482.6 x 94.2 x 466.07mm (WxDxH)
