Description

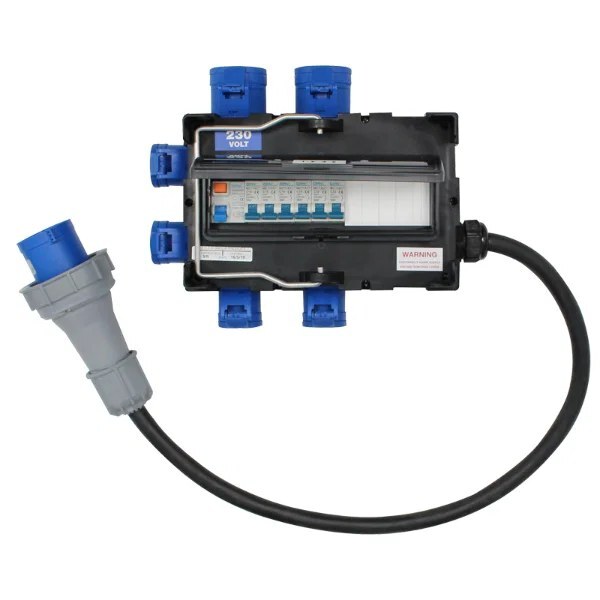

These PCE ISCHL distribution boxes are compact, robust and lightweight, constructed from shock‑resistant polyamide and designed for event and rental use with IP44 splash‑proof protection. They accept a 63 A 230 V single‑phase input via a 1 m H07 trailing cable with built‑in 30 mA 2‑pole RCD, and distribute power through two 32 A and four 16 A 230 V IP44 sockets, each individually protected by Type C MCBs. The unit features a stackable design for efficient storage and is made in the EU, making it ideal for reliable, portable power distribution in demanding environments.
Specs
– Input rating: 63 A 230 V single‑phase
– Input protection: 30 mA 2‑pole RCD
– Outputs: 2 × 32 A 230 V sockets, 4 × 16 A 230 V sockets
– Output protection: Type C MCBs for each socket
– Housing: shock‑resistant polyamide, IP44 rated
– Dimensions: 200 × 400 × 320 mm
– Weight: 5.8 kg
