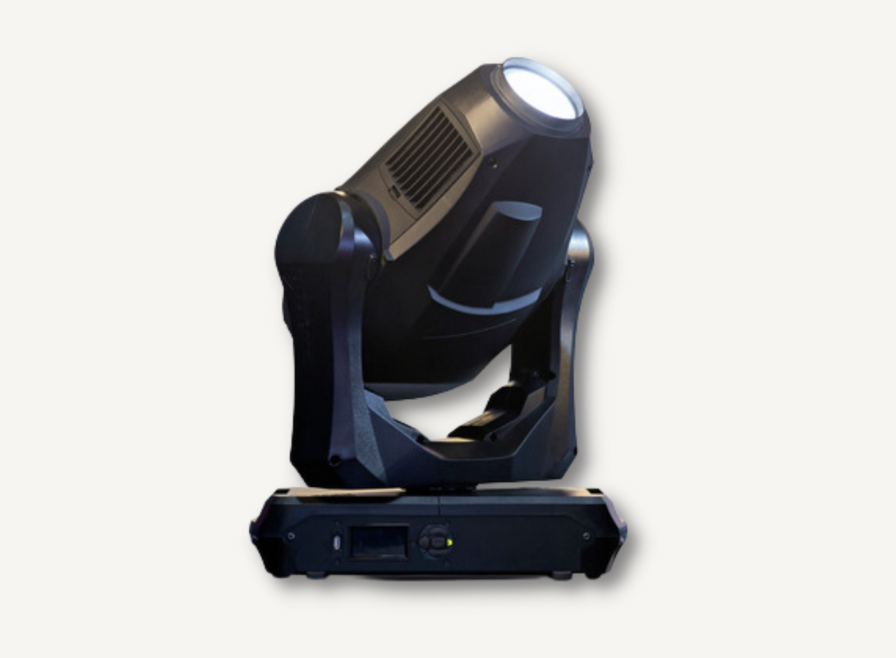

Martin MAC Quantum Profile

Add To Quote
Category:

Description

Experience unparalleled brightness with our premium LED profile fixture. Our fast and smooth CMY colour mixing system delivers crisp white light, gobo projections, and stunning mid-air displays.

With the introduction of our innovative Animotion™ FX system, you can now achieve breathtaking beam animations like never before. Say goodbye to old 700/800 W discharge lamps and embrace the future of lighting technology with our cutting-edge LED solution

FEATURES

Flat field, crisp image, high contrast
Full feature set including CMY colour mixing and 1:3 zoom
Very low weight and compact design
Super high-speed movements and effects
Consistent photometric performance via the latest LED technology

PHYSICAL
Length: 452 mm (17.8 in.)
Width: 431 mm (17.0 in.) across yoke
Height:
642 mm (25.3 in.) head straight up
648 mm (25.5 in.) maximum

DYNAMIC EFFECTS
Electronic dimming: Four dimming curve options
Colour mixing: CMY, independently variable 0 – 100%
Colour wheel: 6 colour filters plus open

Beam effects: Rotating three-facet prism
Rotating gobo wheel: 6 interchangeable gobos plus open, wheel rotation, gobo rotation, indexing and shake
Static gobo wheel: 10 gobos plus open, wheel indexing, rotation and shake

Iris: 0 – 100%, pulse effects
Zoom: Motorized
Focus: Motorized, with zoom-focus tracking
Shutter effect: Electronic, with variable speed regular and random strobe

Pan: 540°
Tilt: 268°
Pan and tilt speed: Adjustable via onboard control panel and DMX

CONTROL AND PROGRAMMING
Control systems: DMX
RDM: Implemented
Control resolution: 8-bit, with 16-bit control of dimming, gobo indexing, zoom, focus, pan and tilt

Setting and addressing: Control panel with backlit graphic display
DMX channels: 19/27
DMX compliance: USITT DMX512-A

RDM compliance: ANSI/ESTA E1.20
Transceiver: RS-485

Fixture software update: Direct using USB memory stick or via DMX link using Martin USB Duo™ DMX Interface Box

OPTICS
Zoom range: 12° – 36° (1:3)
Light source: 475 W LED engine
LED refresh rate: 3000 Hz
Default colour temperature: 6000 K
Output: 12,700 lumens

CONSTRUCTION
Housing: High-impact flame-retardant thermoplastic
Colour: Black
Protection rating: IP20

INSTALLATION
Mounting points: 4 pairs of quarter-turn locks
Location: Indoor use only, must be fastened to surface or structure
Orientation: Any
Minimum distance to combustible materials: 0.2 m
Minimum distance to illuminated surfaces: 2.0 m

CONNECTIONS
AC power input: Neutrik PowerCon
DMX and RDM data in/out: 5-pin locking XLR

ELECTRICAL
AC power: 120-240 V nominal, 50/60 Hz
Power supply unit: Auto-ranging electronic switch mode
Typical half-cycle RMS inrush current: 10.3 A
Typical power consumption, all effects static, zero light output: Approx. 50 W
Maximum total power consumption: 750 W

TYPICAL POWER AND CURRENT
120 V, 60 Hz: 4.8 A, 576 W, PF 0.999
208 V, 60 Hz: 2.8 A, 568 W, PF 0.991
230 V, 50 Hz: 2.5 A, 565 W, PF 0.988
240 V, 50 Hz: 2.4 A, 565 W, PF 0.988

Measurements were made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%.

THERMAL
Cooling: Forced air (temperature-regulated, low noise, user-definable levels)
Maximum ambient temperature (Ta max.): 40° C
Minimum ambient temperature (Ta min.): 5° C
Total heat dissipation (calculated, +/- 10%): 2000 BTU/hr.

APPROVALS
EU safety: EN 60598-2-17 (EN 60598-1), EN 62471
EU EMC: EN 55015, EN 55032, EN 55103-2, EN 61000-3-2, EN 61000-3-3, EN 61547
US safety: UL 1573
US EMC: FCC Part 15 Class A
Canadian safety: CSA C22.2 No. E598-2-17 (CSA E60598-1)
Canadian EMC: ICES-003 Class A
Australia/NZ: C-TICK N4241
