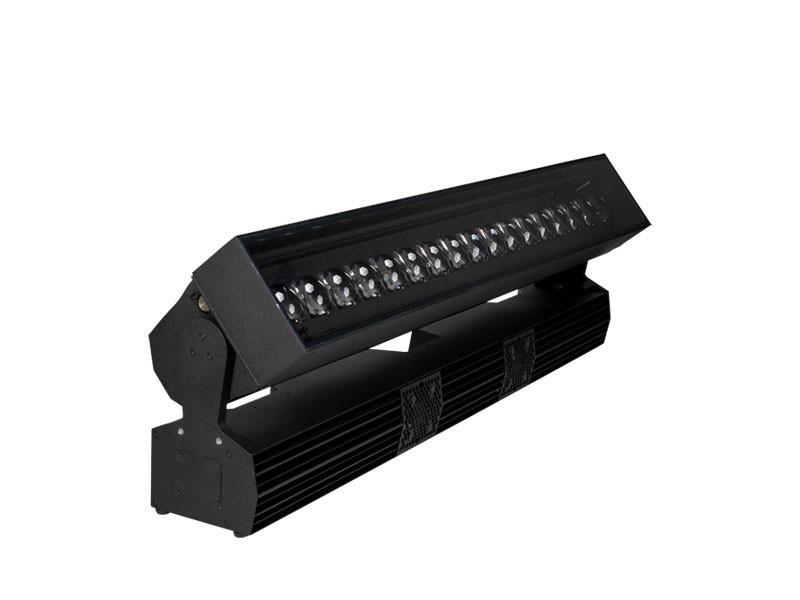

GLP Impression X5 Bar IP65

Description

The GLP impression X5 IP Bar is an IP65 rated, linear LED batten with 18 powerful 40 W RGBL LED’s, a wide zoom range, and the new GLP iQ.Gamut color calibration algorithm that creates perfect white spectrums with excellent color rendering.

The new squared lens design ensures maximum lumen efficiency and gives an unprecedented curtain of light at its narrowest angle of just 4.5°, and delivering smooth and homogenous washes all the way out to its widest 60° wash.

As a part of the new GLP X5 family it offers a wide feature package, including selectable calibrated white points, a tungsten simulation channel, magenta / green correction, virtual color wheel and variable CTC, along with twin layer effects with plenty of dynamic pattern macros.

The impression X5 IP Bar offers our patented fast tilt movement in combination with seamless pixel pitch across fixtures, and features wired and wireless control as standard.

The impression X5 IP Bar’s enclosure is just as suitable for indoor use on the stage to protect against confetti, fog, pyro and dust.
Light Source
Type
RGBL LED
Light Source Count
18
Light Source Power
18x 40 W
Light Source Lifetime
50,000 h
LED Refresh Rate
Low, Optimal (Default), High 1, High 2, Max
CCT
6,500 K
Duv
perfect white point matches with low Duv values
CRI (Ra)
6,500 K: 90 | 3,200 K: 85
TLCI
6,500 K: 90 | 3,200 K: 75
TM-30-15
6,500 K: Rf/Rg: 87/105 | 3,200 K: Rf/Rg: 85/110
Optical System
Output
up to 7,500 lm
Min. Zoom
4.5°
Max. Zoom
60°
Zoom Ratio
1:13
Output Lens
18x 48x48mm (square)
Effects
Dimmer
0 – 100%; 16 bit
Shutter
Strobe, Pulse, Sparkel, etc.
Color mixing
RGB
RGBL
x;y
Color Mix Priority
different Layer Priority settings
CTC (Color Temperature Control)
2,500 – 10,000 K
CQC (Color Quality Control)
High Output (HO)
High Quality (HQ)
Desaturation
Magenta/Green-Shift
yes
Tungsten Simulation
8x linked to fix CCT, 8x relative to Colormix
Color Wheel
virtual Color wheel, 64 LEE referenced colors
Pattern Effects
50 dynamic pattern macros with special effects
Tilt Movement Angle
195°, 16 bit
Zoom speed
super fast zoom mechanics
Control
DMX channels
M1: 20 / M2: 33 / M3: 48 / M4: 84 / M5: 63 / M6: 81
Control Modes
6
Protocol
DMX (USITT DMX512-A)
RDM (ANSI/ESTA E1.20)
Art-Net
sACN
iQ.Mesh
optional: Lumenradio CRMX @ FPO
Setting and addressing
control panel with backlit graphic display
4 Button Menu Navigation
DMX
RDM
iQ.Mesh
NFC via iQ.Service App
Software Update
DMX link
via DProg
internal Webinterface
iQ.Mesh
Fixture2Fixture Push
High-Res Channels
Intensity Global
Tilt
Colormix
Performance Modes
fast
normal (balanced)
smooth
Dimming Curves
linear
soft
S-Curve
Fan Modes
regulated
high
medium
low
minimum
Subfixture Mode
Normal
independent
White points
optional: 8,000 K; 5,600 K; 4,200 K; 3,200 K
Others
Stand Alone 1 captured Scene
Art-Net/sACN Node
Data Conversion
iQ.Mesh
SW Fixture2Fixture Push
iQ.Gamut
Rec.709
Rec.2020
DCI P3.65
Connectors
Signal connection
XLR 5-Pin
In/Out
Neutrik etherCON port A & B (failsafe)
Power input
Neutrik powerCON TRUE1
In/Out
Electrical Specifications
Power input
100 – 240 VAC / 50 – 60Hz
Power supply
auto-ranging electronic switch-mode
Power supply cable
US: 16 A, 14 AWG, UL listed, E304117, SJT, 4.9 ft
EU: 16 A, 1.5 mm², H05VV-F, 1.5 m
max. power (@230V)
750 W
Thermal Specifications
Cooling
combined convection and forced air
max. ambient temperature (Ta max.)
45 °C / 113 °F
min. ambient temperature (Ta min.)
5 °C / 40 °F
Total heat dissipation (calculated, +/-10%)
2,600 BTU/h
Mounting Options
Mounting
2 eyelets for safety cable
4 pairs of 1/4-turn locks for two rigging/installation brackets
Orientation
any
Location
Indoor permanent
Outdoor temporary
Construction
Housing Color
Black
Housing Material
high-impact flame-retardand thermoplastic
Aluminum
steel metal plates
Protection Rating
IP 65
Construction Features
handgaps for carrying
Tilt-Lock-System
Alignment System
threads for external accessory
Smart Slide-In Filter System
Dimensions & Weight
Height
316 mm / 12.44 in
Height (head straight down)
268.5 mm / 10.57 in
Width (across yoke)
1,000 mm / 39.4 in
Length
143.5 mm / 5.65 in
Weight
27 kg / 59.52 lbs
