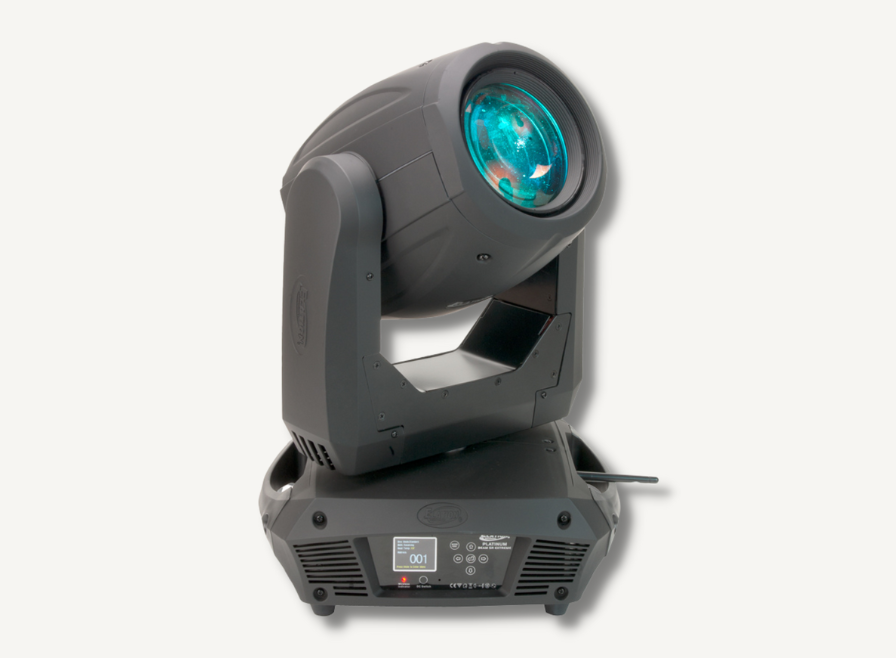

Elation Platinum Beam 5R Extreme

Description

The Platinum Beam 5R EXTREME™ offers unparalleled lighting performance with its 189W Platinum 5R lamp.

This powerful fixture boasts a 3° sharp pin spot be8-facet8 facet rotating prism, and frost effects for stunning visuals. With supe16-bit 16-bit 3-phase pan/tilt motors and a strobe speed of 1-18 fps, this light is perfect for dynamic performances.

The dimming function ranges from 0-100% for maximum control, and focus allows for sharp and precise lighting. The Platinum Beam 5R EXTREME™ features an impressive colour wheel with (12) options including UV, CTO, CTB, and white, and (8) metal rotating, interchangeable gobos for a variety of lighting effects.

The internal EWDMX wireless DMX receiver and support for remote device management protocol make this light incredibly easy to use and control3-pinth 3pin and 5pin DMX in/out and power in connections, a 6-button touch control panel, and a low 350W max power consumption, this light is an exceptional choice for professional lighting needs.

The multi-voltage universal auto-switching power supply ensures that the Platinum Beam 5R EXTREME™ is compatible with any setup, with a range of 120-240v. Get flicker-free operation for TV and film, making it perfect for any performance.

FEATURES:

3° Sharp Pin Spot Beam, CTO and CTB Color Correction, 8 Facet Rotating Prism and Frost Effects, Super Fast 16 bit 3-Phase Pan and Tilt Motors, Flicker Free Operation for TV and FILM, Internal EWDMX Wireless DMX Receiver, Remote Device Management Protocol Support

SOURCE
Philips 189W Platinum 5R Lamp

PHOTOMETRIC DATA
100,100 LUX 9,299 FC @49.2’ (15M)

EFFECTS
Frost, Motorized Focus, Strobe (1-18 fps), Electronic Dimming: 0% – 100%, 8 Facet Rotating Prisms and Macros

COLOUR
(11) Colors Including UV, CTO, and CTB

GOBOS
(8) Metal Rotating, Indexing, Interchangeable Gobos

CONTROL / CONNECTIONS
(3) DMX Channel Modes (12 / 14 / 18)
Remote Device Management
Pan Movement: 540°/630° / Tilt Movement: 270°
6 Button Control Panel
Full ColoUr 180° Reversible LCD Menu Display
16 Bit 3-Phase Pan/Tilt Motors
3pin & 5pin DMX In/Out
powerCON In
Internal EWDMX Wireless DMX Receiver
With Wired Digital Communication Network

SIZE / WEIGHT
Length: 13.9” (352mm)
Width: 13.0” (329mm)
Vertical Height: 20.0” (509mm)

ELECTRICAL / THERMAL
AC 100-240V – 50/60Hz
350W Max Power Consumption
14°F to 113°F (-10°C to 45°C)
