Description

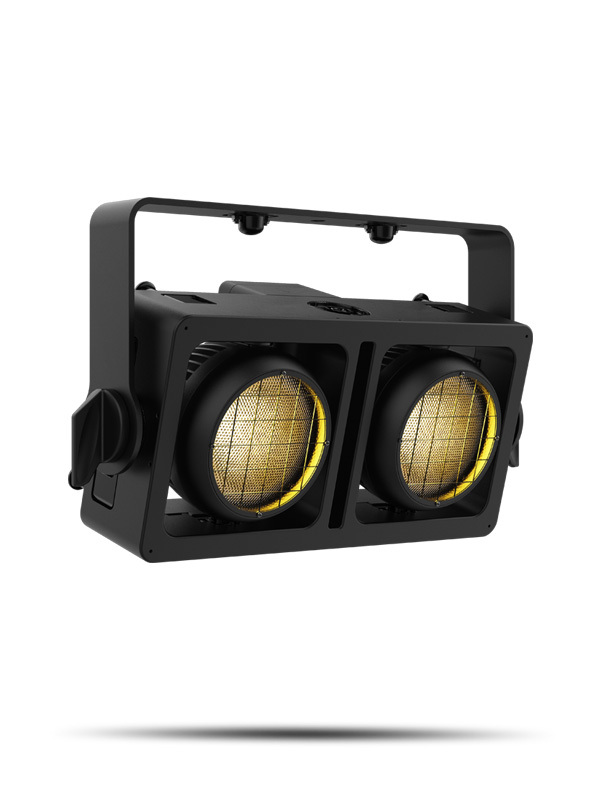

STRIKE Array 2 is an outdoor-ready audience blinder powered by two intense warm white LEDs housed in independently focusable pods. An emulated “amber shift” warms the color temperature of the light as it dims to deliver a classic tungsten look. Its variable PWM and high CRI make it ideal for broadcast applications. Thanks to a custom interlocking system CHAUVET Professional has developed, STRIKE Array 2 can be interconnected with multiple Array units for scalable design configurations without any tools. Omega-Bracket locks are also installed both on the yoke and the back of the IP65 blinder to give you a streamlined truss mounting process.
SPECIFICATIONS
OPTICAL
Light Source: 96 LED (WW) 1.33 W, (2.2 A), 2700 K, 50,000 hours life expectancyLight Source: 10 LED (Amber) 2.63 W, (.750 A), 50,000 hours life expectancyColor Temperature (at full): 2792 KCRI: 92.9TLCI: 91 Beam Angle: 60.3° Field Angle: 99°Illuminance (total): 360 lux @ 5 mSelectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 25,000 Hz
DYNAMIC EFFECTS
Dimmer: ElectronicStrobe Rate: 0 to 25 HzDim Modes: 4Built-in Automated Programs: Yes
CONSTRUCTION / PHYSICAL
Dimensions: 18.5 x 10.4 x 6.3 in (469 x 264.5 x 161 mm)Dimensions (shipping size): 20.7 x 8.5 x 12.8 in (525 x 215 x 325 mm)Weight: 17.6 lb (8 kg)Weight (shipping weight): 21.6 lb (9.8 kg)Exterior Color: BlackHousing Material: Aluminum die-cast
CONNECTIONS
Power Connection: Edison (Local) plug to Seetronic Powerkon IP65Power Input: Seetronic Powerkon IP65Power Output: Seetronic Powerkon IP65Data Connectors: 5-pin IP65 XLRCable Length (power): 5 ft (1.5 m)
CONTROL
Control Protocol: DMX, RDMDMX Channels: 1, 2, 3, 4, 5, 8 or 9
ELECTRICAL
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)Power Linking: 11 units @ 100 V; 13 units @ 120 V; 22 units @ 208 V; 24 units @ 230 V;25 units @ 240 VPower and Current: 124 W, 1.24 A @ 100 V, 60 Hz [3.1 A inrush]Power and Current: 123 W, 1.04 A @ 120 V, 60 Hz [1.8 A inrush]Power and Current: 127 W, 0.61 A @ 208 V, 60 Hz [1.9 A inrush]Power and Current: 129 W, 0.56 A @ 230 V, 50 Hz [3.8 A inrush]Power and Current: 130 W, 0.54 A @ 240 V, 50 Hz [1.2 A inrush]Power and Current (resting): 3 W, .021 A @ 100 V, 60 HzPower and Current (resting): 4 W, .029 A @ 120 V, 60 HzPower and Current (resting): 7 W, .040 A @ 208 V, 60 HzPower and Current (resting): 9 W, .040 A @ 230 V, 50 HzPower and Current (resting): 10 W, .044 A @ 240 V, 50 Hz
CERTIFICATIONS / QUALIFICATIONS
CE, METIP Rating: IP65, temporary outdoor/wet use, with pressure equalizing M12 GORE valveTemperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
