Description

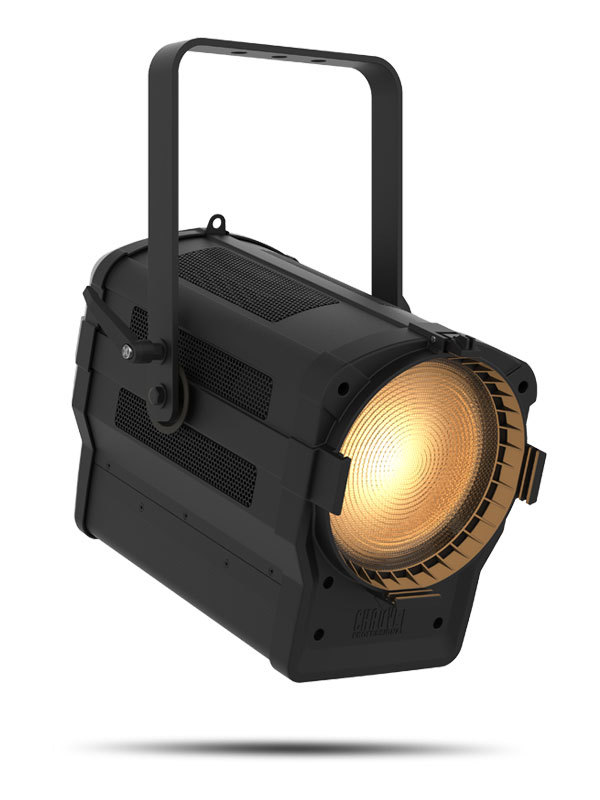

Ovation F-265WW is a high-power Fresnel-style fixture utilizing our efficient warm white LED system to project a bright, beautifully soft, high CRI (95+) field of light ideal for theatres and television studios. A motorized zoom with a 16°- 68° field range and the light output can be controlled via DMX, onboard dials, RDM, adjustable PWM and an easy to navigate OLED full text display.
Warm white fresnel with output comparable to an 8”, 2,000 W Fresnel
Soft and even field of light
16-bit dimming resolution for smooth fades
Virtually silent operation for use in any situation
Motorized zoom range between 16° to 68°, manually or via DMX
SPECIFICATIONS
OPTICAL
Light Source: 1 LED (WW) 230 W, (3.6 A), 50,000 hours life expectancyColor Temperature (at full): 3142 KCRI: 96Beam Angle: 16° to 46°Field Angle: 27° to 68°Zoom Range: 16° to 68°Lumens (27°): 9,283Lumens (68°): 12,802Illuminance (27°): 4,010 lux @ 5 mIlluminance (68°): 1,162 lux @ 5 mSelectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz
DYNAMIC EFFECTS
Dimmer: ElectronicShutter/Strobe: ElectronicZoom: MotorizedStrobe Rate: 0 to 30 HzDim Modes: 4
CONSTRUCTION / PHYSICAL
Dimensions: 15.11 x 12.59 x 17.71 in (384 x 320 x 450 mm)Weight: 17.2 lb (7.9 kg)Exterior Color: BlackHousing Material: Aluminum alloy, Aluminum die-castAccessory Holder/Gel Frame Size: 7.5 in (191 mm)
CONNECTIONS
Power Connection: Edison (Local) plug to Neutrik powerCONPower Input: Neutrik powerCONPower Output: Neutrik powerCONData Connectors: 3- and 5-pin XLRCable Length (power): 5 ft (1.5 m)
CONTROL
Protocol(s): DMX, RDMDMX Channels: 1, 2, 2 or 5Modes/Personalities: 4 personalities (1, 2, 2, 5)
ELECTRICAL
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)Power Linking: 7 units @ 120 V; 12 units @ 208 V; 13 units @ 230 VPower and Current: 222 W, 1.84 A @ 120 V, 60 HzPower and Current: 230 W, 1.10 A @ 208 V, 60 HzPower and Current: 231 W, 1.01 A @ 230 V, 50 Hz
CERTIFICATIONS / QUALIFICATIONS
CE, MET, FCCIP Rating: IP20, dry locationTemperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
