Bring your light shows to the next level with the Pointe, a powerful and versatile lighting fixture. With its bright and fast sharp parallel beam, you can effortlessly project static or rotating gobos for sharp in-air and surface images.

The Pointe’s output is crystal clear and brilliant, even at its full 20-degree zoom, and you can enhance your effects with the 6-way linear or 8-way circular prisms. The frost filter and 13 rich colours allow you to create a smooth and even wash.

Despite its small and lightweight design, the Pointe delivers an output that surpasses your expectations, thanks to its efficient short arc 280W discharge source and Robe optical configuration. With its ability to function as a Beam, Spot, Wash, or FX fixture, the Pointe is the only fixture you need, and it travels efficiently in a case of 4.

SOURCE

Lamp: Discharge short arc lamp with integrated reflector
Approved model: Osram Sirius HRI 280 W RO
Lifetime: Standard mode (280 W) – 2.000 hrs, Eco mode (230 W) – 3.000 hrs
CRI: 75
CCT: 7000 K
Control: Automatic and remote on/off
Ballast: Electronic

OPTICAL SYSTEM

Robe’s proprietary optical design

Zoom range: 2.5°-10° beam application, 5° – 20° spot application
Output lens diameter: 110 mm

Fixture total lumen output:
Beam mode: 9.870 lm
Spot mode: 5.150 lm

Light output:
Beam mode: 82.400 lx @ 20 m
Spot mode: 90.000 lx @ 5 m

DYNAMIC EFFECTS

Colour wheel: 13 dichroic filters + white
Rotating Gobo wheel: 9 rotating, indexable and replaceable “SLOT&LOCK” glass gobos + open
Static Gobo wheel: 14 gobos + open
Prism 1: 8-facet circular prism rotating in both directions at different speeds
Prism 2: 6-facet linear prism rotating in both directions at different speeds
Frost effect: Separate, variable
Motorized zoom and focus
Pre-programmed random strobe & pulse effects
Dimmer: 0 – 100%

CONTROL AND PROGRAMMING

Setting & Addressing: ROBE Navigation System 2 (RNS2)
Display: QVGA Robe touch screen with battery backup, gravitation sensor for auto screen positioning, operation memory service log with RTC
3-editable programs, each up to 100 steps
Stand-alone operation

Protocols: USITT DMX-512, RDM, ArtNet, MA Net, MA Net2, sACN

DMX Protocol modes: 3
Control channels: 24, 16, 30
Pan/Tilt resolution: 8 or 16 bit
Colour wheel positioning: 8 or 16bit
Rotating gobo wheel positioning: 8 bit
Gobo indexing & rotation: 8 or 16bit
Static gobo wheel positioning: 8 bitt
Frost: 8 bit
Zoom: 8 or 16bit
Focus: 8 or 16bit
Dimmer: 8 or 16bit

MOVEMENT

Pan movement: 540°
Tilt movement: 270°
Controllable speed of Pan/Tilt movement

ROTATING GOBOS

Glass gobos: 9 rotating gobos
Outside diameter: 15.9 mm
Image diameter: 12.5 mm
Thickness: 1.1 mm
High-temperature borofloat or better glass
“SLOT&LOCK” system for easy replacement of gobos

STATIC-BEAM GOBOS
Aluminium wheel with fixed gobos: 10 gobos & 4 beam reducers

THERMAL SPECIFICATION
Maximum ambient temperature: 45°C (113°F)
Maximum surface temperature: 90°C (194°F)

ELECTRICAL SPECIFICATION AND CONNECTIONS
Power supply: Electronic auto-ranging
Input voltage range: 100-240 V, 50/60 Hz
Power consumption: 470 W at 230 V / 50 Hz
Power in connector: Neutrik powerCON
DMX and RDM data in/out: Locking 3-pin & 5-pin XLR
Ethernet port in/out: RJ45

APPROVALS
CE Compliant
cETLus Compliant

MECHANICAL SPECIFICATION
Height: 575 mm (22.6″) (head in vertical position)
Width: 364 mm (14.3″)
Depth: 250 mm (9.8″)
Weight: 15 kg (33 lbs)
Ingress protection rating: IP20

RIGGING

Mounting points: 2 pairs of ¼-turn locks
2x Omega adaptors with ¼-turn quick locks
Universal operating position
Pan and Tilt transport locks
Safety cable attachment point

Replacement Lamp OSRAM SIRIUS HRI 280w (AA3686005DC)

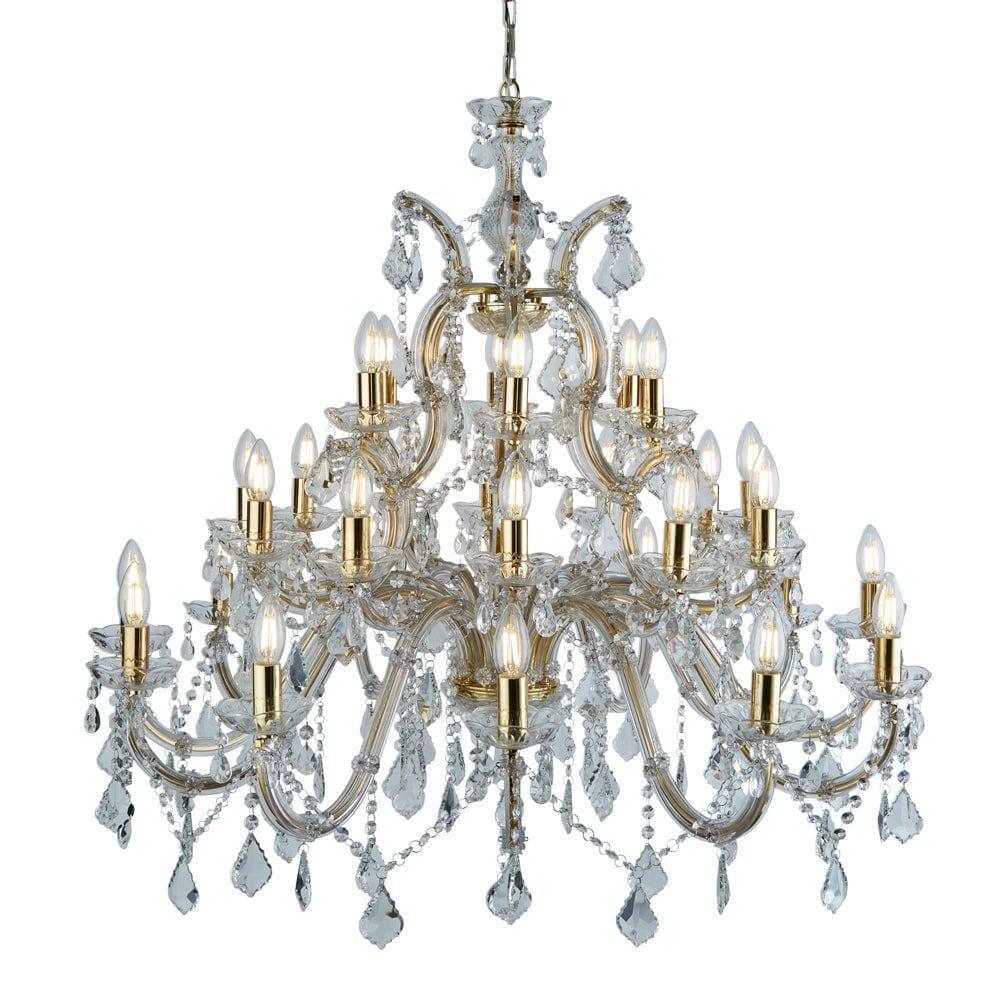

Chandelier 30 light
