6-channel club mixer with 4-band EQ
Built to enable the most creative DJs to craft original soundscapes
Newly developed filter control
Compressor knob for each channel

High-end DJ mixing experience. The Pioneer DJM-V10. A 6-channel club mixer with elite sound quality that gives you the ability to truly craft your sound. Choose your ideal setup and plug everything from CDJs, turnables, samplers, synths, and drum machines. With 6 channels available at your fingertips, you’ll be able to get even more creative with your DJ performance.

Other new features include a 4-band EQ for precise EQ mixing letting you mould tracks into each other. A newly developed filter with resonance control lets you switch on high or low pass with a press of a button. There’s also a compressor knob for each channel which beef up’s the audio in real time. This is great for playing old or unmastered tracks when you’re worried they’ll be overwhelmed by the loudness of music made with modern production techniques.

Full Description
Elite sound quality
The DJM-V10 provides studio-quality, 64-bit mixing and dithering processing. This is achieved alongside 32-bit high-quality A/D and D/A converters and a low-jitter clock circuit. The result of this is high quality audio, even at high volume with a full low-end, vibrant mids and precise highs.

Six channels
The six channels provide a range of connectivity options, allowing you to utilise everything from CDJs and turntables to samplers, synths, and drum machines. Set up is made easy thanks to the vast range of analog inputs that directly line up with the assigned channels.

USB/MIDI terminal
Thanks to the 96kHz/24-bit sound card, it’s easy to input and output up to six stereo channels without compromising the sound quality when connected to Mac/PC. The input of the send and master signals, as well as the input and output of individual channels, can be routed via USB to your computer. To ensure smooth handovers between sets, two laptops can be connected simultaneously.

Multi I/O terminal
A USB A terminal and a 1/4-inch TS jack are mounted on the top and the rear of the mixer. These can be used to connect to sounds arranged using the RMX-1000 app for iPad or other FX apps. These can also be used to record sets without deterioration in sound quality. It is also possible to route insert-type hardware effect units through the 1/4-inch TS jack connection.

Four band EQ and compressor
The DJM-V10 offers a newly designed 4-band EQ and built in compressor to apply further sonic adjustments to the audio signal. The four band EQ provides ultra-control over the input signal. Completely isolate the high and/or low and tweak the two mid ranges, which have their own custom curves, to fine tune your mix.

Each channel features an independent compressor knob. This can be used to match old and new tracks with varying degrees of compression for mixing purposes. This can be further affected using the newly developed channel fader allowing for precise level control.

Dedicated send and filter sections
The send section of the DJM-V10 allows you to send audio to one of four built-in FX and up to two pieces of external equipment. Connect guitar pedals, FX units, and more to the TS jack send/return terminals to create unique sounds and remixes.

The filter section can be used for subtly tweaking audio or to completely alter the sound of a track. Select between high and low pass filters and turn the resonance control knob to alter the cutoff frequency.

Beat FX
A touch display is provided to control the effects section, allowing for intuitive effects manipulation. These can then be applied to the desired channel via the BEAT FX Assign button on each channel strip. A new Shimmer effects has been added to the DJM-V10, a Beat FX that adds brightness to audio.

Features
Elite sound quality
Features the most advanced sound chip set Pioneer DJ have ever used
6 channels
4-band EQ
New filter with dedicated knob on each channel
Send/return FX section
3-band master isolator
Compressor knob for each channel
Dual headphones output and booth EQ
Support for external devices, apps, and services
DIN MIDI out
Specifications
Frequency Range: 20 – 40000 Hz
Sampling Rate: 96 kHz
A/D Converter: 32 bit
D/A Converter: 32 bit
S/N Ratio Line: 105 dB
S/N Ratio Phono: 88 dB
S/N Ratio Mic: 79 dB
Distortion: < 0.005 % (LINE)
Inputs:
6 DIGITAL (Coaxial)
6 LINE (RCA)
4 PHONO (RCA)
Send/Return:
3 SEND (1/4-inch TS jack)
3 RETURN (1/4-inch TS jack)
LAN: 1
USB:
2 USB B ports
1 USB A port
Outputs:
2 MASTER (XLR, RCA)
1 BOOTH (1/4 inch TRS Jack)
4 HEADPHONE MONITOR (1/4 inch Jack, mini-jack)
1 REC OUT (RCA)
1 DIGITAL (AES/EBU)
1 MIDI (DIN)
Dimensions (width x height x depth): 437.6 x 107.9 x 467 mm
Product code: DJM-V10

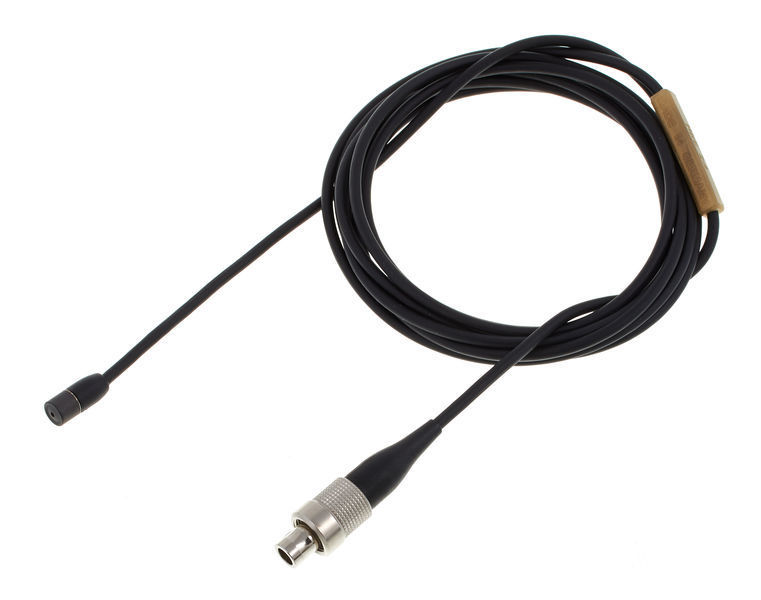

Sennheiser MKE2 (Black) Lavalier Microphone 2
