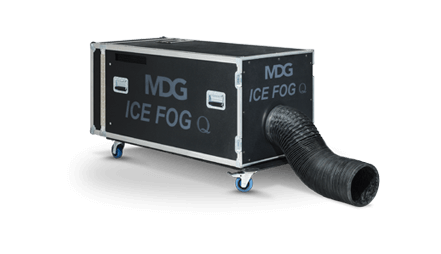

MDG ICE FOG Q

Description

ONE BOTTLE OF FLUID DOES 25 MINUTES
ONE BOTTLE OF GAS DOES 10 MINUTES

Low pressure or high pressure versions available.
Low fluid consumption 90 ml (3.04 us fl oz) per minute at full output.
Adjustable low fog density. 100% duty cycle.
Self-contained unit on wheels for easy transport.
Detachable remote control and 8 m (26 ft) cable included.
Compatible with dmx interface and remote control timer.
The quietest low fog generator on the market can be placed closer to the action.

SPECIFICATIONS

Fluid consumption – 90 ml (3.04 oz) per minute at full output
Liquid CO2 type
Low pressure version: refrigerated
High pressure version: non-refrigerated
Liquid CO2 consumption
Low pressure version: 3 L (0.79 US gallon) at 15.5 bar (225 psi) per minute
High pressure version: 2.77 kg (6 lb) at 60.3 bar (875 psi) per minute
Reservoir capacity – 2.5 L (0.66 US gallon)
Fog colour- Pure white
Particle size- 0.5 – 4.5 microns
CO2 running time
Low pressure version: 180 L (48 US gallon) canister (DEWAR) = 70 minutes
High pressure version: 35 kg (77 lb) canister = 13.25 minutes
Warm-up time – 8 minutes (maximum)
Fluid type – MDG Low Fog Fluid
Operating voltage (single phase) – 208 VAC or 230 VAC, 50/60 Hz
Power consumption – 2,850 W
DIMENSIONS
Total length – 1.71 m (67 3/8“)
Operating length – 1.51 m (59 1/2”)
Width – 67 cm (26 3/8”)
Height – 78 cm (30 5/8”)
Weight – 113 kg (250 lb)
Approval – CE certified and ETL field approved
