DMX 512 as standard

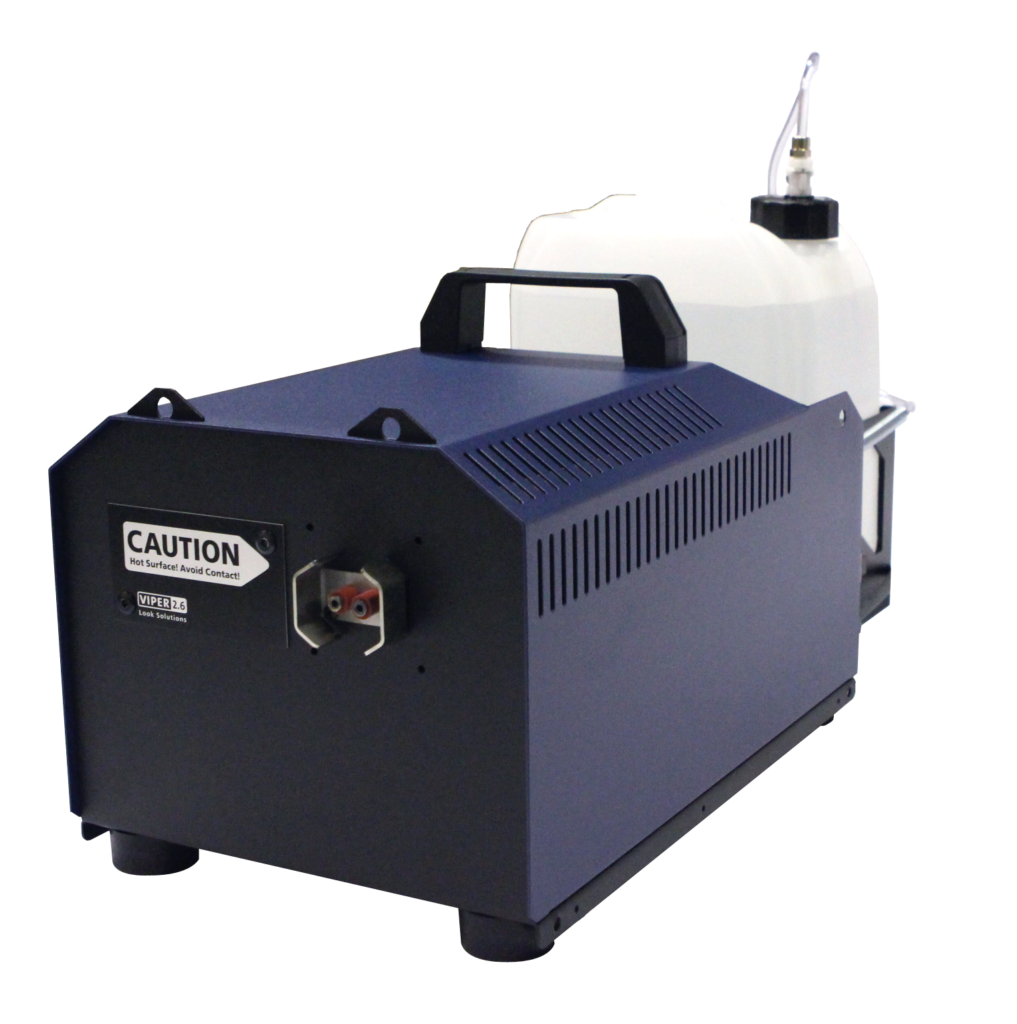

The VIPER 2.6 can be controlled via DMX 512. The connection is done with 5pin-XLR-plugs.
The DMX start address can be adjusted and saved via the control panel.

The machine can also be controlled with analog (0 – 10 V) via a lighting desk or via XLR-remote (option). This connection is done with 3pin-XLR-plugs.

A stand-alone-mode is also possible. The adjustments are done directly at the machine. A short press at the start button makes the machine run. Therefore a permanent pressing of the start button is unnecessary.
Internal timer
With the internal timer the fog time can be exactly adjusted in seconds, the wait time in minutes and the output in %.
Control panel
The control panel with LED-display, simple symbols allow for easy operation. It also protects the control buttons against dirt.
Finest adjustments of the output
Digital technology makes fine adjustment of the pump possible. In steps of 1% the output can be adjusted from 0 – 99%. Thus, any desired effect from a tiny fog-cloud to the thickest fog can be produced. This enables the VIPER 2.6 to be used in both small and large locations.
Connector for external fan
An external fan with max. 800 Watt can be connected to the VIPER 2.6. Once connected to the machine, the fan can also be adjusted via DMX. The machine then uses two following channels at the desk.
Advantages
DMX as standard, analog and stand-alone-mode
Internal timer
Fog output adjustable in steps of 1% (0 – 99%)
Continuous output
Easy handling
Powerful output
Made in Germany
Technical data
Procedure
vaporizing fog generator
Power requirement
2600 Watt
Voltage
230 V / 50 Hz
Warm up time
approx. 7 min.
Fluid consumption
at max. output
at continuous output

240 ml/min.
. 70 ml/min.
Fluid tank capacity
5 Liter
Fog output
adjustable in 99 steps
Output projection
max. 15 m
Fogging time
at max. outup
at < 50% output

approx. 40 sec.
Continuous output
External fan
max. 800 Watt
Control
DMX 512
0 – 10 V analog
Stand-alone-Mode
Radio remote (option)
Temperature control
Microprocessor controlled
Overheating protection
Heater block/Thermostat
Pump/Thermal switch
Dimensions (L x W x H)
52 x 23 x 25 cm
Weight without bottle
approx. 12 kg
