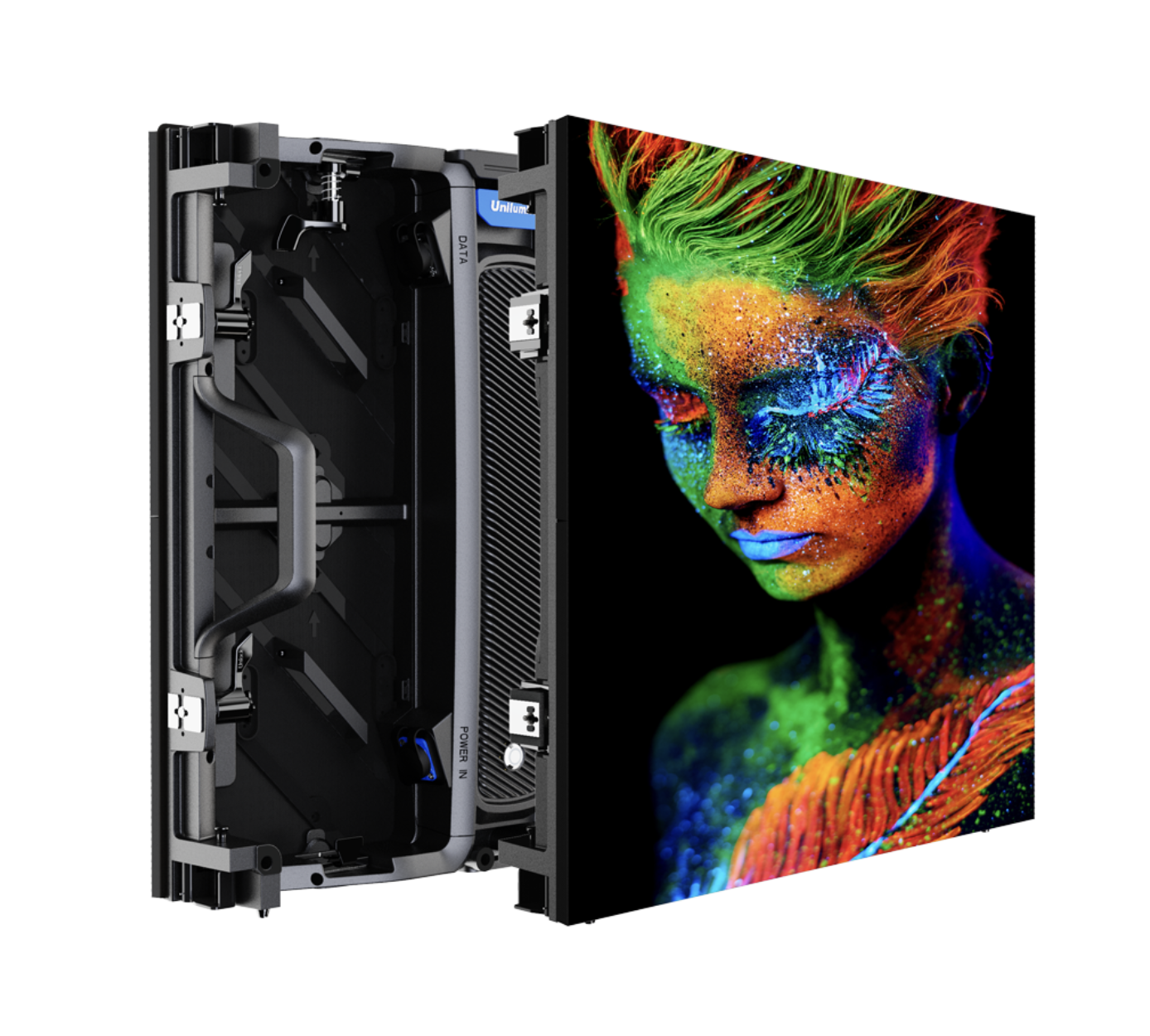

Unilumin URM-03 – 500mm x 500mm – 3.9mm Indoor/Outdoor Screen
Product features: – Click-lock — true single-person installation. – Automatic/Flip shield — comprehensive corner protection. – Curve range — (Convex) -10°~+10° (Concave) Main Technical Specifications: Parameter URMIII03 Pixel Pitch 3.9mm LED Type 3-in-1 Black SMD Brightness 4,500 cd/m2 Pixel Density 65,536 pixels/m2 Pixels Per Panel 128×128 pixels Module Size W250mm×H250mm Panel Size W500mm×H500mm×D71mm Weight 13.2…
Description
Product features:
– Click-lock — true single-person installation.
– Automatic/Flip shield — comprehensive corner
protection.
– Curve range — (Convex) -10°~+10° (Concave)
Main Technical Specifications:
Parameter URMIII03
Pixel Pitch 3.9mm
LED Type 3-in-1 Black SMD
Brightness 4,500 cd/m2
Pixel Density 65,536 pixels/m2
Pixels Per Panel 128×128 pixels
Module Size W250mm×H250mm
Panel Size W500mm×H500mm×D71mm
Weight 13.2 kg/panel
Maintenance Rear
Ingress Protection IP65
Curve (Convex) -10°~+10°(Concave)
Aspect Ratio 1:2
Panel Area 0.5 m2
Recommended Viewing Distance ≥3.9m
Environment Outdoor
Material Die-cast Aluminium
Calibration Support Brightness and Chroma
Brightness Control Manual/Automatic
Color Temperature 2,000K~9,300K Adjustable
Horizontal Viewing Angle 140°
Vertical Viewing Angle 120°
Contrast Ratio 6,000:1
Input Power 420 W/panel
Input Power 150 W/panel
Input Voltage 100~240 VAC
Processing Depth 14 bit
Scan Method 1/8
Refresh Rate 3,840@60 Hz
Video Frame Rate 50/60 Hz
Input Power Frequency 50~60 Hz
LED Life Time 100,000 Hours
Operating Temperature/Humidity -20°C~+50°C/10~90%RH
Storage Temperature/Humidity -20°C~+55°C/10~60%RH
Standard Mounting Configuration Hanging, Stacking
Certification TUV-CE/CB/FCC/IC/UL
