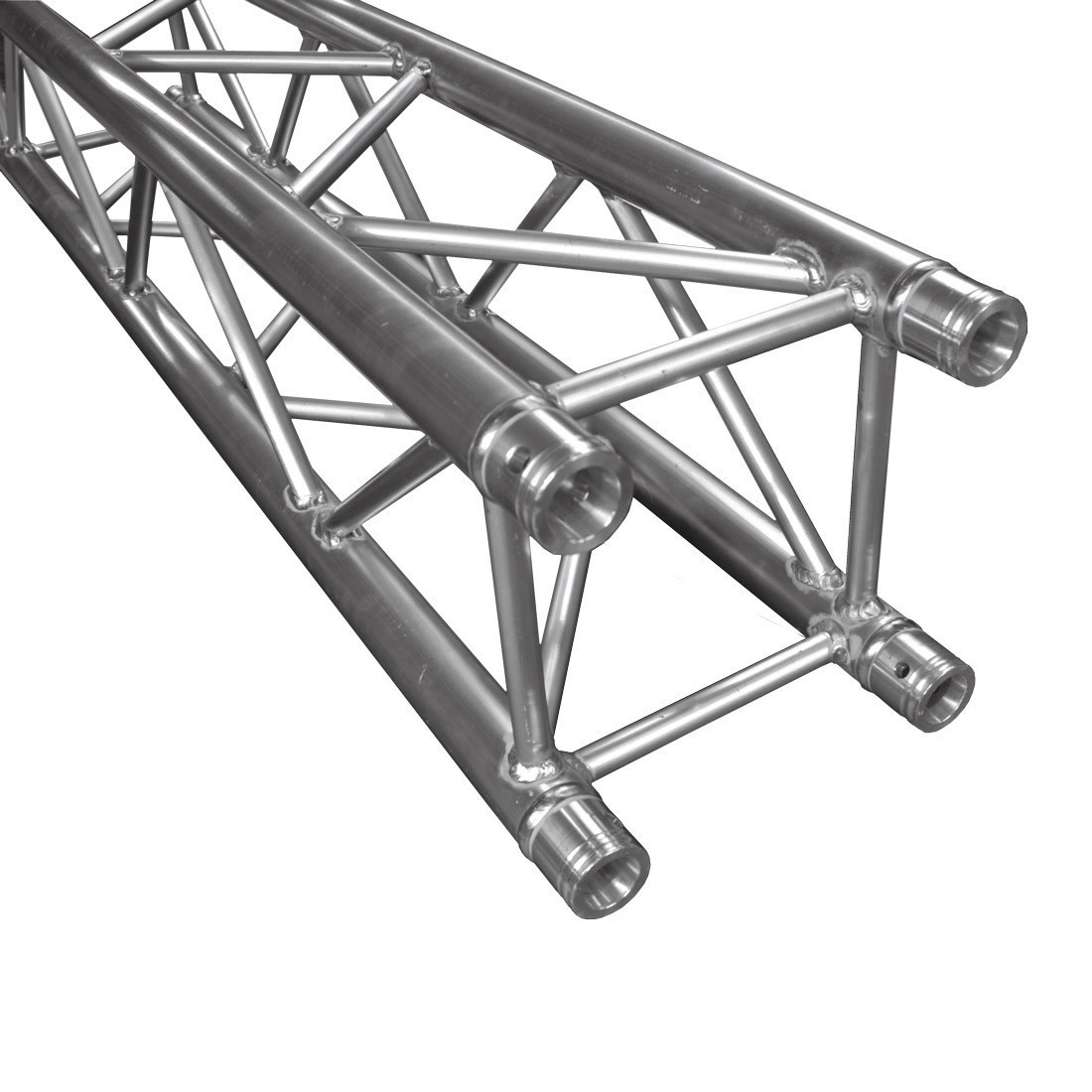

Duratruss DT 34/2-300, 3 Metre Truss

Description

The DURATRUSS DT34 system is a 4-point trussing system, which is connected with four standard sized conical fast coupler, bolts and split pin. The advantage of the quick connector system lies in the fact that it closes force-lockingly with the belt tube and allows rapid assembly and dismantling. The four tubes are made of 50 mm aluminum tube with a wall thickness of 2 mm and give this system an outstanding weight-to-weight ratio. The struts have a diameter of 20 mm with a wall thickness of 2 mm.

– Diametrics main pipe: 50mm
– Wall thickness: 2 mm
– Material: Aluminium EN-AW 6082 T6 (AlMgSi1)
– Dimensions braces: 20 x 2 mm
– Cone connectors were included in delivery (4 cones, 8 steel pin, 8 safety clip)
– Length: 3000mm (withour cone)
– Width: 290 mm
– Height: 290 mm
– Weight: 15,6 kg
