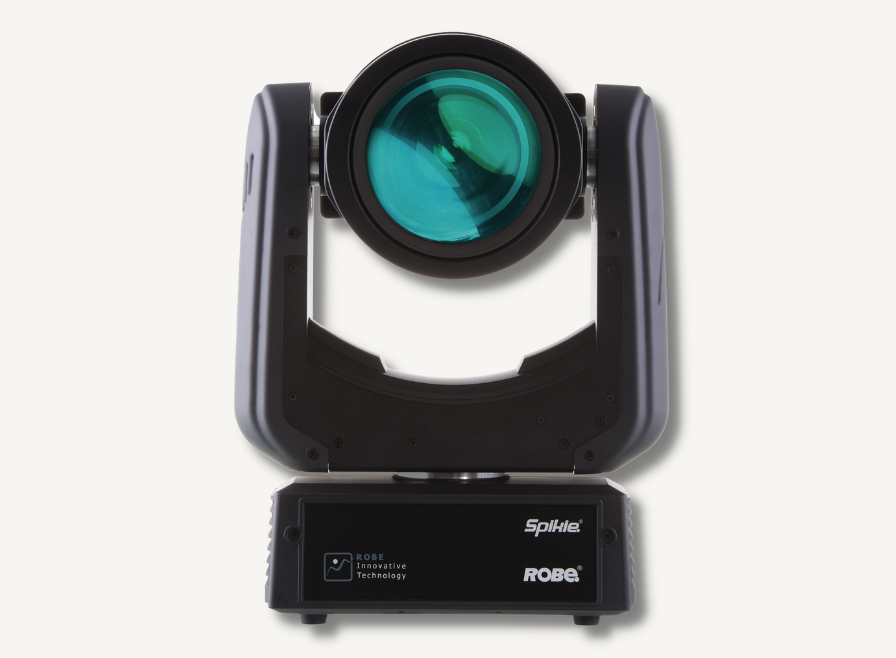

Robe Spikie Wash/Beam/Effect Light

Description

Introducing the Spikie LED WashBeam, a compact and powerful lighting solution that delivers fast and vibrant illumination. With its 60W RGBW light source and specially designed 110mm front lens, the Spikie produces a solid beam that can zoom from a wide 28° wash to a tight 4° beam in an instant.

This fixture is equipped with Robe’s patented MCFE technology, which generates sharp multicoloured spikes of light that rotate in both directions at variable speeds. The Beam Effect Engine also transforms the output into a dynamic ray of three narrow beams, adding another layer of visual excitement to your stage setup.

Weighing only 7.3 kg, the Spikie is highly portable and can be hung in any position, making it ideal for a variety of settings.

Height: 408 mm (16.1″) – head in vertical position
Width: 277 mm (10.9″)
Depth: 147 mm (5.8″)
Weight: 7.3 kg (16.1 lbs)

Ingress protection rating: IP20

OPTICAL SYSTEM:

Source: 60W RGBW LED

Zoom Range: 4º – 28º
High-Efficiency Zoom Optical System Ratio: 7:1
Output Lens Diameter: 110mm

Total Lumen Output:
1.150 lm (integrating sphere)
920 lm (goniophotometer)

Light Output: 9.270 lx @ 5m

DYNAMIC EFFECTS AND FEATURES

Colour mixing mode RGBW or CMY
Variable CTO: 2.700K – 8.000K
Virtual Colour Wheel: with 66 preset swatches
Tungsten lamp effect at whites: 2.700 K and 3.200 K (redshift and thermal delay)
Colour rainbow effect with variable speed
MCFE™ – Multi-Coloured Flower Effects – creating spectacular multicolour beam effects in the air rotating in both directions at variable speed (patent pending)
Prism: 3-facet circular rotating prism
Motorized zoom
Shutter: Electronic with variable speed strobe (max.20 flashes per second)
Pre-programmed random strobe & pulse effects
High-resolution electronic dimming: 0 – 100%

CONTROL AND PROGRAMMING

Setting & Addressing: two-row LCD display & 4 control buttons, stand-alone operation with 3 editable programs (each up to 40 steps)
Protocols: USITT DMX-512, RDM
Wireless CRMX™ technology from Lumen Radio: On request

DMX Protocol modes: 2

Control channels: 27, 21
Pan/Tilt resolution: 16 bit
RGBW or CMY: 8 or 16 bit
Zoom: 8 or 16 bit
Dimmer: 8 or 16 bit (internal 18 bit)

MOVEMENT

Pan movement range 540° with continuous rotation control
Tilt movement range 360° with continuous rotation control
Movement control: Standard and Speed

Controllable speed of Pan/Tilt movement
Automatic Pan/Tilt position correction

THERMAL SPECIFICATIONS

Maximum ambient temperature: 45 °C (104 °F)
Maximum surface temperature: 70°C (158°F)
Minimum operating temperature: -5°C (23°F)
Total heat dissipation: max. 340 BTU/h (calculated)

ELECTRICAL SPECIFICATIONS

Power supply: Electronic auto-ranging
Input voltage range: 100-240 V, 50/60 Hz
Power consumption: Max. 100 W at 230 V / 50 Hz
Power in/out connector: Neutrik powerCON TRUE1 in/out

DMX and RDM data in/out: Locking 5-pin XLR
