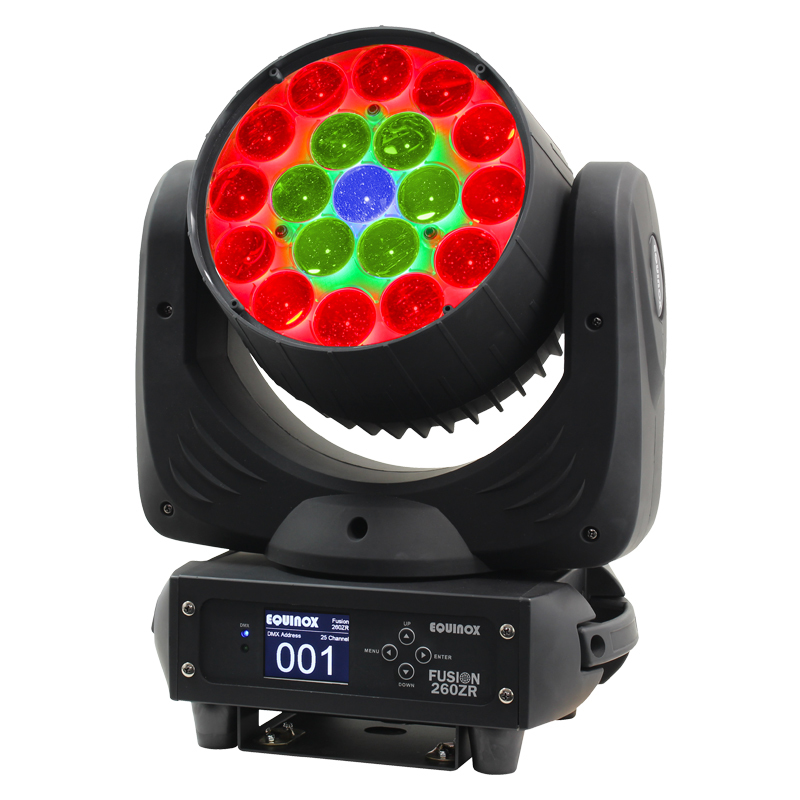

Equinox Fusion 260ZR LED Wash

Description

The Fusion 260ZR LED Wash features 19 x 12W quad-colour LEDs (RGBW) outputting gentle pastels to rich saturated colours. Arranged in 3 concentric circles the LEDs offer many different programming options to create stunning colour and pattern effects as well as providing a comprehensive wash coverage. The unit is also equipped with a 6°- 50° motorised zoom.

– 19 x 12W quad-colour LEDs (RGBW)
– Adjustable beam angle: 6°- 50°
– 6° – 40,098 Lux @ 2m (full on), 50° – 6,316 Lux @ 2m (full on)
– 4.5kHz refresh rate
– Motorised zoom
– Pixel zone mapping
– DMX channels: 2/8/17 or 25 selectable
– Auto, sound active and master/slave modes
– Forward facing show modes
– Pan/tilt auto correction
– 16-Bit pan/tilt positioning
– Pan: 540°, Tilt: 270°
– 0 – 100% dimming and variable strobe
– Supplied with quick release omega clamps
– Square hole spacing on omega clamp receivers allows for clamps to be mounted in all orientations
– 4 push button menu with LCD display
– PowerCON input/output
– 3-Pin XLR input/output
– Fan cooled

– Power consumption: 290W
– Power supply: 100~240V, 50/60Hz
– Fuse: F4A 250V
– Dimensions: 414 x 324 x 221mm
– Weight: 9.7kg
