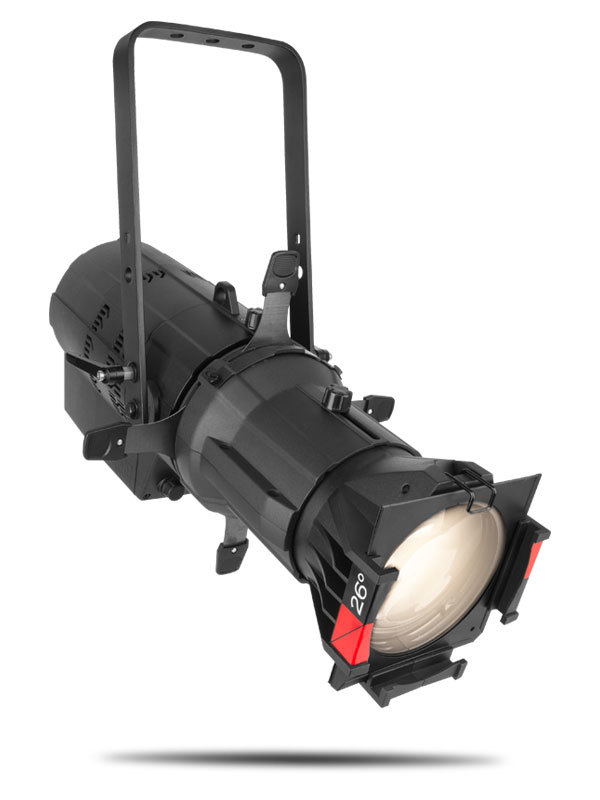

Chauvet Ovation E-260WW IP Profile (Body Only)

Add To Quote
Category:

Description

Ovation E-260WW IP takes the brilliant breakthrough concept of the Ovation E-260WW and places it outdoors. Our standard shutter assembly and lenses lend familiarity and ease-of-use to this groundbreaking IP65-rated ERS-style fixture with an output surpassing that of 750 W HPL. This groundbreaking ellipsoidal also boasts extremely smooth dimming down to the very bottom of the curve as well as a flat and even field of light for superior gobo projection. Selectable PWM, RDM, and onboard dimming curves ease setup and programming.

CONNECTIONS

Power Connection: Edison (local) plug to Seetronic Powerkon IP65Power Input: Seetronic Powerkon IP65Power Output: Seetronic Powerkon IP65Data Connectors: 5-pin IP65 XLRCable Length (power): 5 ft (1.5 m)
CONTROL

Control Protocol: DMX, RDMDMX Channels: 2, 3, 4 or 7Modes/Personalities: 4 personalities (2, 3, 4, 7)
ELECTRICAL

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 7 units @ 120 V; 12 units @ 208 V; 13 units @ 230 V
Power and Current: 221 W, 1.85A @ 120 V, 60 Hz
Power and Current: 215 W, 1.11 A @ 208 V, 60 Hz
Power and Current: 213 W, 1.01 A @ 230 V, 50 Hz
