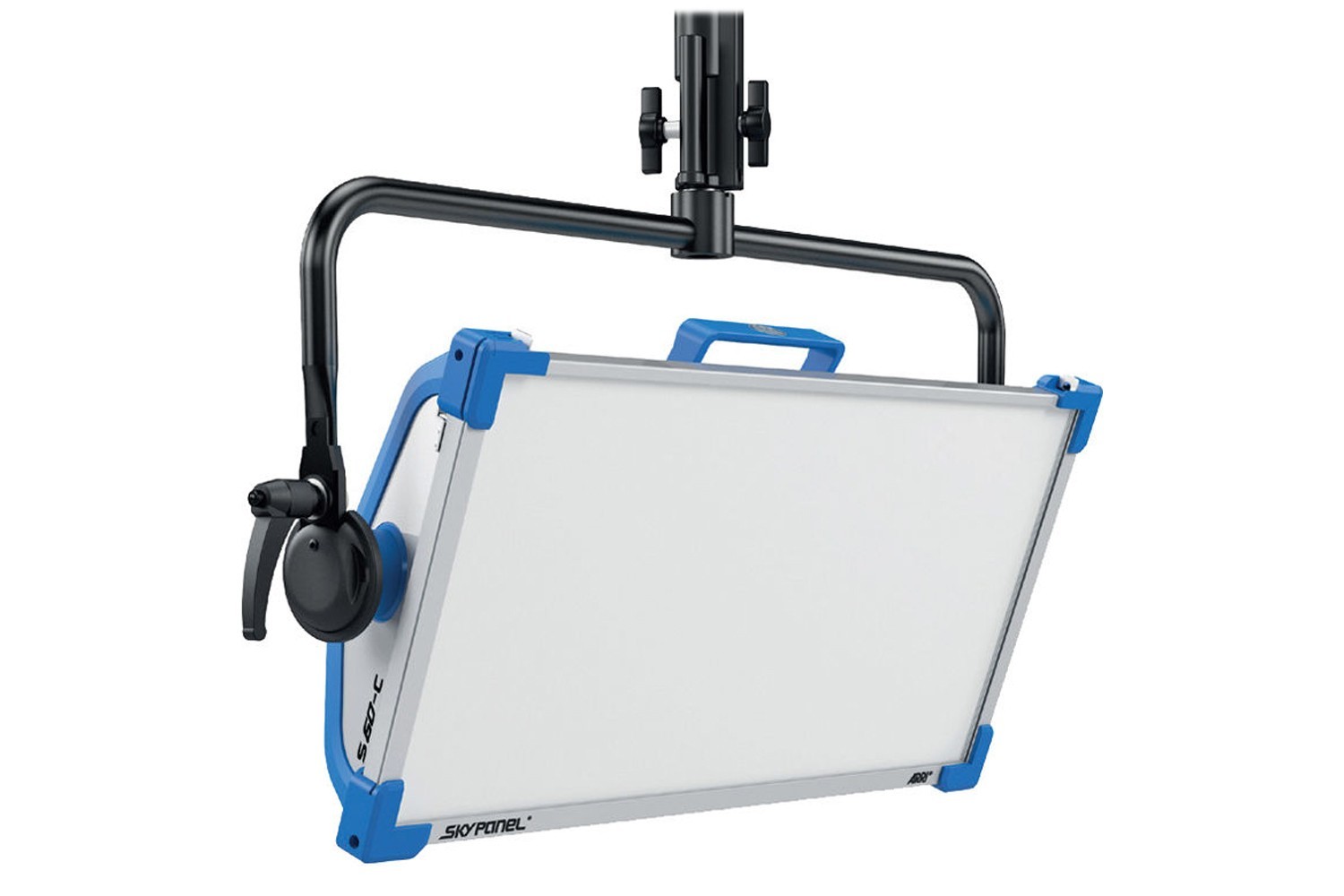

ARRI SkyPanel S60-C LED Softlight

Description

SkyPanel is available in several sizes: the S30, S60, S120, and S360. The S60 is a mid-range model, featuring a light aperture of 645 x 300 mm and accommodating the vast majority of applications. The S120 is twice as long as the S60, but weighs nearly the same. Its larger light aperture makes a great soft light even better. The S30 is a smaller, more portable version; half the length of the S60, it is perfect for on-the-go mobile applications. The S360 is the largest and brightest SkyPanel with four times the output of the S60 and almost six times the aperture size. The S360 is perfect for lighting large areas with tuneable, soft light. S30 and S60 models are available in fully color tuneable and remote phosphor versions.

Unlike other tuneable fixtures, SkyPanel makes no sacrifice when it comes to light output. SkyPanel puts out a tremendous amount of light, in a soft and uniform beam field. Brighter than a 2 kW tungsten soft light or a 6 kW tungsten space light, the SkyPanel S60 has more than enough light for most applications. At the same time, the lamphead is able to perform beautifully at lower light levels. This range of illumination and color gives users an unprecedented amount of control.

Made in Germany to the high standards for which all ARRI products are known, SkyPanel is built to last – constructed from resilient materials and assembled by hand with great care. Other features include an on-board battery input for mobile applications, LAN port for network connectivity, USB-A port for firmware updates via thumb drive, and many more.

Series – SkyPanel
Model – S60-C
Optical System- Soft Diffusion Panel
Light Aperture / Lens Diameter in mm – 645 x 300 mm
Light Aperture / Lens Diameter in inch – 25.4 x 11.8″
Beam Angle – 115° (Half Peak Angle)
Weight in kg net*Manual Version: approx. 13 kg
Pole Operated Version: approx. 14 kg
Weight in kg packed*Manual Version: approx. 21 kg
Pole Operated Version: approx. 22 kg
Weight in lbs. net*Manual Version: approx. 28 lbs
Pole Operated Version: approx. 31 lbs
Weight in lbs. Packed*Manual Version: approx. 46 lbs
Pole Operated Version: approx. 49 lbs
Measurements (HxWxL) incl. Pin in mm*Manual Version: 566 x 826 x 133 mm
Pole Operated Version: 567 x 796 x 133 mm
Measurements (HxWxL) excl. Pin in mm*Manual Version: 433 x 826 x 133 mm
Pole Operated Version: 452 x 796 x 133 mm
Measurements (HxWxL) incl. Pin in inch*Manual Version: 22.3 x 32.5 x 5.2″
Pole Operated Version: 22.3 x 31.3 x 5.2″
Measurements (HxWxL) excl. Pin in inch*Manual Version: 17.0 x 32.5 x 5.2″
Pole Operated Version: 17.8 x 31.3 x 5.2″
Measurements (HxWxL) Packed size in mm*470 x 860 x 300 mm
Measurements (HxWxL) Packed size in inch*18.5 x 33.9 x 11.8″
HandlingAluminium Yoke, High-Strength Tilt Lock / Steel Yoke, Pole Operation for Pan & Tilt
Mounting28 mm Spigot (Junior Pin)
Tilt Angle+/- 90°
Lamphead Voltage Input48 V DC
Power Consumption420 W Nominal, 450 W Maximum
Lamphead Power ConnectionMale 3-Pin XLR – 15 Amp (Pin 1: Negative / Pin 2: Positive)
Battery ConnectorMale 4-Pin XLR – 10 Amp (Pin 1: Negative / Pin 4: Positive)
Battery DC Voltage Range23 to 36 V DC
Battery Mode Light Output50 % of total output
White Light2,800 K to 10,000 K continuously variable correlated color temperature
Colored LightFull RGB+W Color Gamut with Hue and Saturation Control
Color Temperature Tolerance+/- 100 K (nominal), +/- 1/8 Green-Magenta (nominal)
Color RenditionCRI Average > 95, TLCI Average > 90
Green-Magenta AdjustmentContinuously adjustable (Full Minusgreen to Full Plusgreen)
Dimming0 to 100 % continuous
ControlOn-Board Controller, 5-Pin DMX In and Through, EtherCon LAN network connectivity, USB-A, Art-Net
Wireless ControlNot integrated, via SkyLink
Remote Device Management (RDM)DMX Setup, Hour Counter and Standard RDM Commands
Software / Mini-USB InterfaceEthernet: DMX Setup, Fixture Status and Firmware Upgrade through PC, Mac USB-A: Software Upgrade via flash drive
Housing ColorBlue/Silver, Black
Ambient Temperature Operation-20 to +45° C (-4 to +113° F)
Protection Class / IP RatingIII / IP 20
Estimated LED Lifetime (L70)50,000 hours
Estimated Color Shift Over Lifetime (CCT)+/- 5 %
CertificationsCE, CB, ENEC, cNRTLus, FCC, PSE

Power Supply UnitS60/S120 PSU
Power Supply Input Range110 to 240 V ~, 50/60 Hz
Power Supply Output Range48 V DC
Power Input ConnectionpowerCON TRUE1 (Bare Ends / Schuko / Edison)
Power Output ConnectionFemale 3-Pin XLR to 10 Amp (Pin 1: Negative / Pin 2: Positive) powerCON TRUE1 (mains power through)
Weight in kgapprox. 4 kg
Weight in lbsapprox. 8 lbs
Measurements (HxWxL) in mm*91 x 191 x 383 mm
Measurements (HxWxL) in inch*3.6 x 7.5 x 15.1″
ControlOn-Board On/Off Switch
MountingSkyPanel PSU Super Clamp Adapter / Rail Mount Adapter
CertificationsCE, CB, ENEC, cNRTLus, PSE
