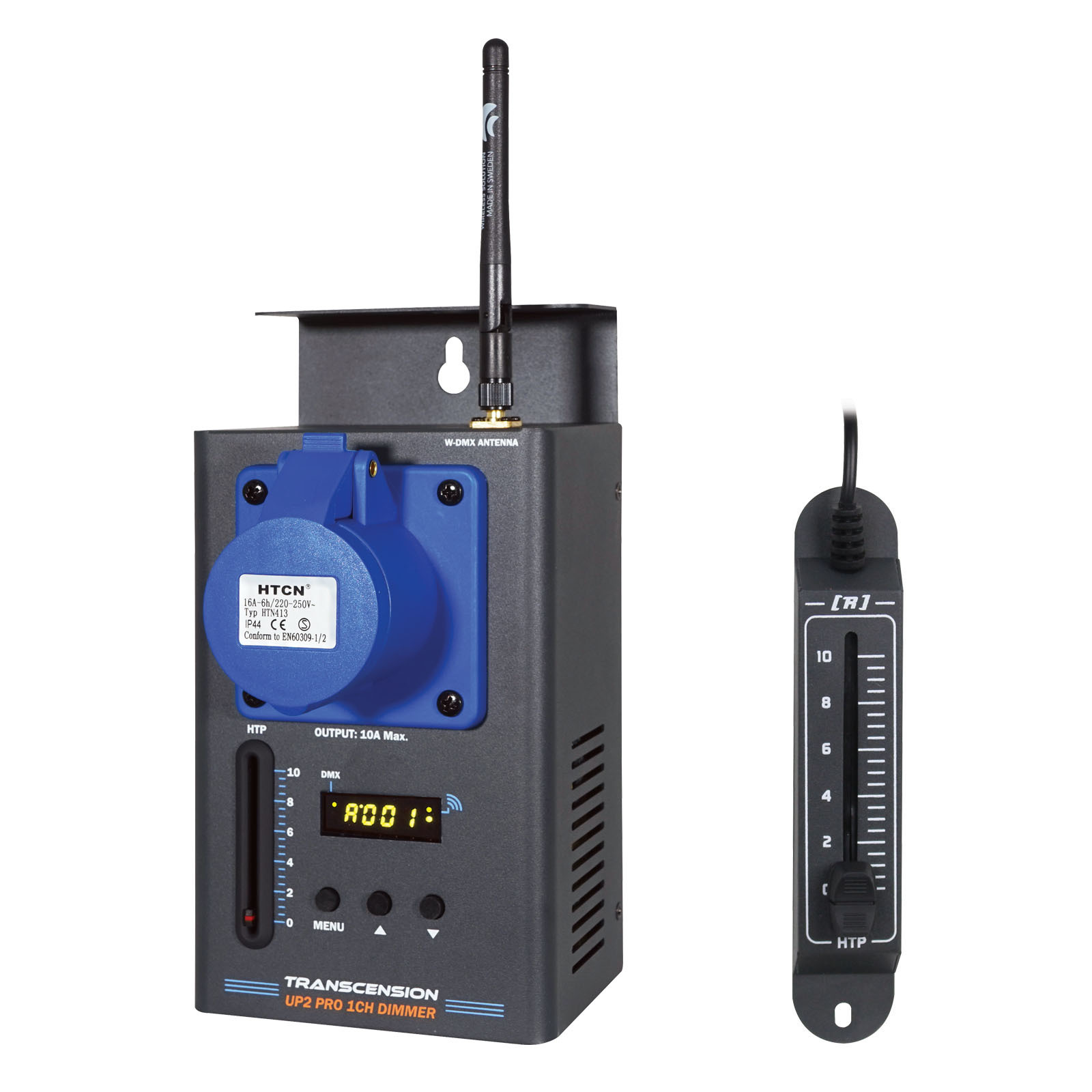

UP2 PRO 1 Channel Dimmer Pack

Description

Convection cooled dimmer with an external remote HTP fader. Perfect for using with standalone fixtures in small studios, for follow spots or for incorporating into and expanding DMX systems. Suitable for use with non-incandescent loads when used as a switch pack. W-DMX on board to receive wireless DMX, this unit can then relay the DMX signal via the XLR output.
– Compact, 1 channel DMX/HTP dimmer pack
– W-DMX on board to receive wireless DMX and relay the DMX signal via the XLR output
– 2.4GHz G3, G4 and G5 compatible
– Dim preset – Dim limiter
– HTP function
– Remote fader included
– Can be configured as a switch pack
– Easy-to-use mounting bracket
– PowerCON input
– 5-Pin XLR input/output
– Output connector: 16A
– Maximum output: 10A (resistive load)
– Trailing edge dimming technology
