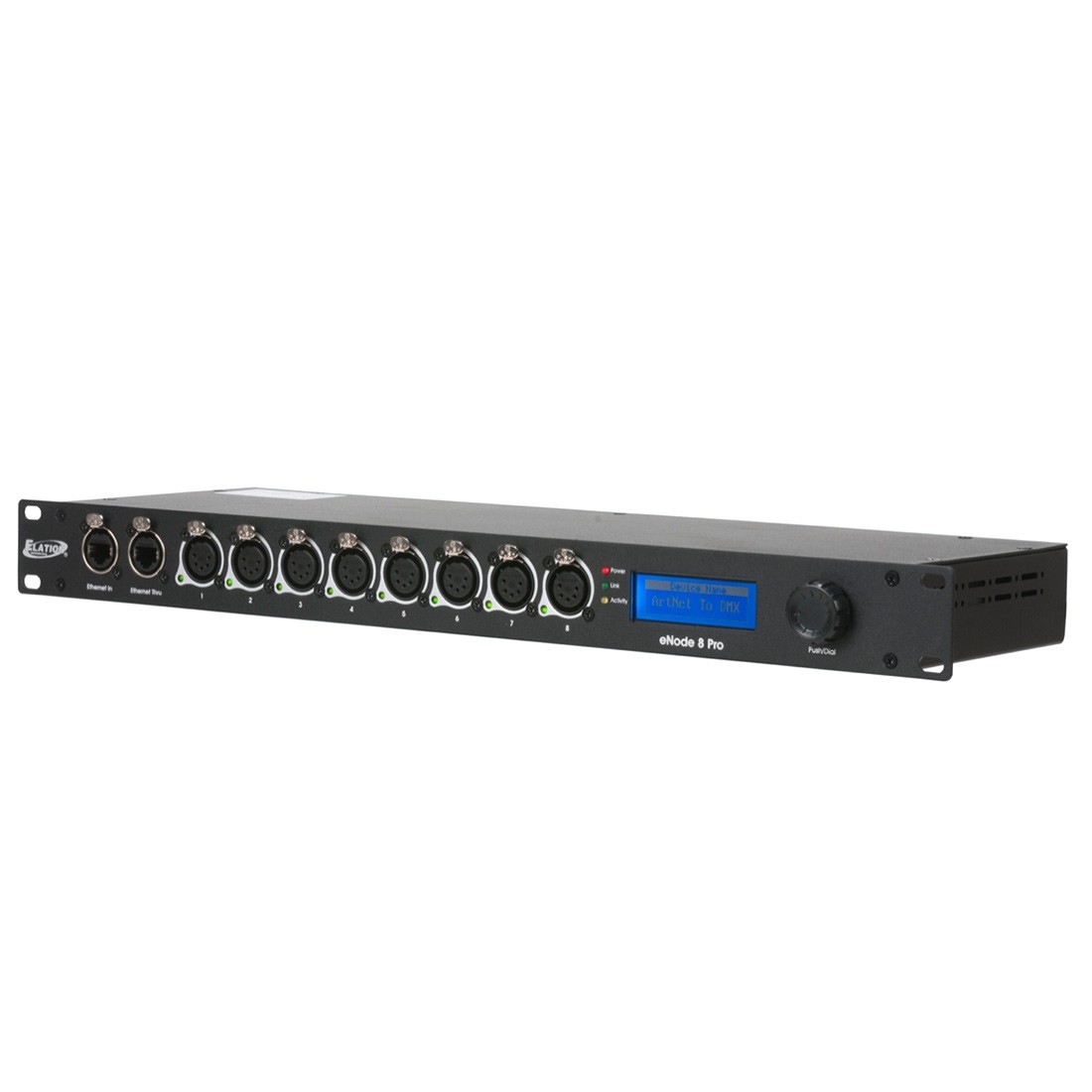

Elation eNode 8 Pro Ethernet – Artnet / DMX node

Description

The eNode8 PRO™ is a 1U rack space 8-universe Ethernet-DMX node which supports Art-Net, sACN, and RDM compatible DMX control systems utilizing 2 RJ45 etherCON auto-switching 10/100Mbps inputs and 8 5pin DMX ports which can be configured as inputs or outputs. Features include DMX bilateral conversion support, sACN auto-detection, variable MAC address assignable, auto MDI/MDIX, DMX splitter function (1 input / 3 outputs or 1A input / 3A outputs and 1B input / 3B outputs), broadcast and backup modes, built-in Ethernet repeater switch, an LCD control menu display and LED indicators, push button configuration encoder wheel, a lightweight die-cast aluminum housing, and includes standard 19-inch rack mount ears.

Features
8-Universe Ethernet-DMX Node
DMX, RDM, Art-Net, and sACN Protocol Support
DMX Bilateral Conversion Support Compact
sACN Auto-Detection
Variable MAC Address Assignable
Auto MDI/MDIX
DMX Splitter Function (1 Input / 3 Outputs)
Broadcast Mode (One Device Transmits Same Signal to Other Connected Devices)
Backup Mode
1U Rack Space Mountable (rack ears included)

Specifications
CONTROL / CONNECTIONS
8-Universes
DMX, RDM, Art-Net, and sACN Protocol Support
DMX Bilateral Conversion
sACN Auto-Detection
Auto MDI/MDIX
DMX Splitter Function (1 Input / 3 Outputs)
Broadcast Mode (One Device Transmits Same Signal to Other Connected Devices)
Backup Mode
Push Button Configuration Encoder Wheel
LCD Control Menu Display & LED Indicators
(2) RJ45 etherCON TCP/IP 10/100M Inputs
(8) Universal 5pin DMX Ports (can be set as Input or Output)
powerCON Power In
