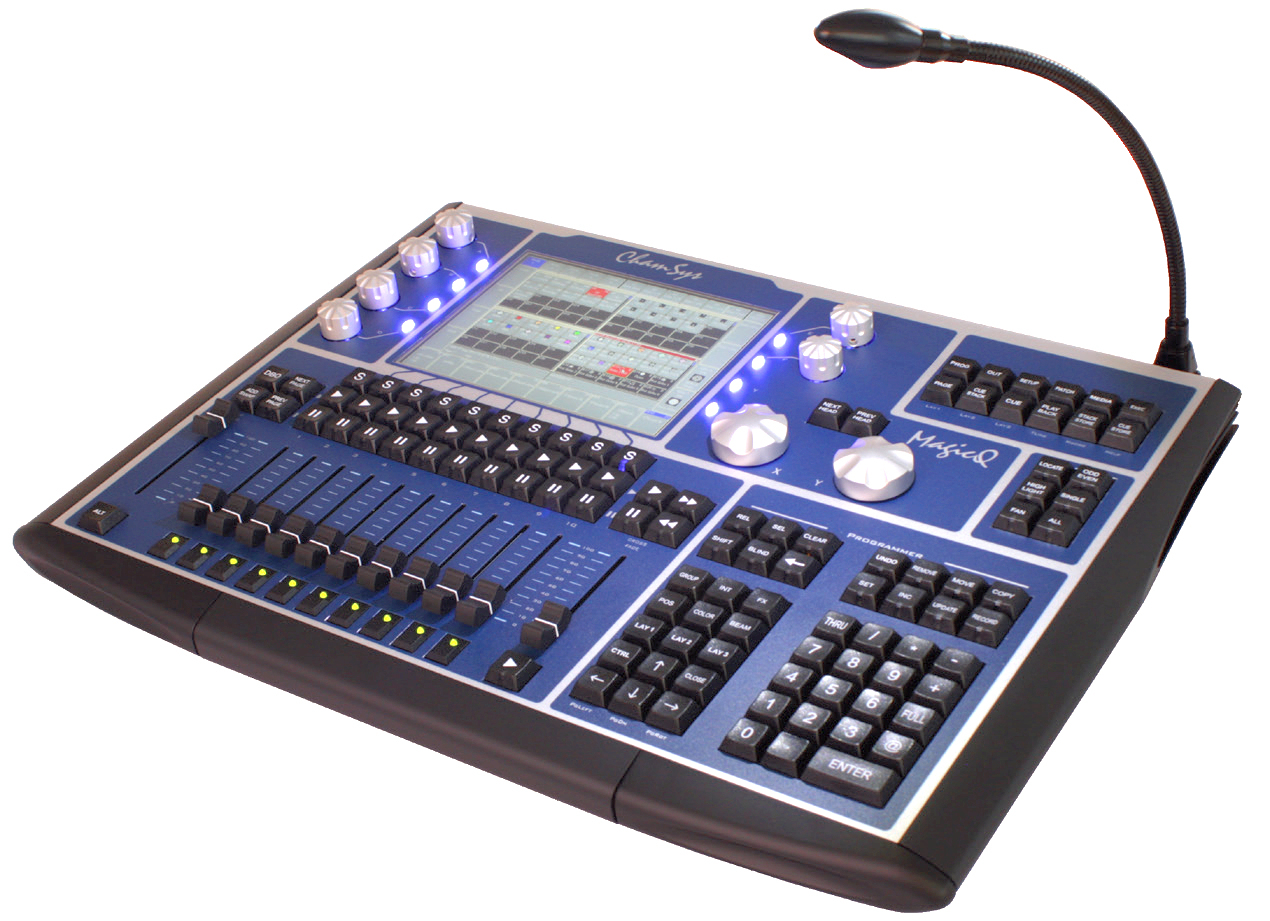

ChamSys MQ80 Lighting Desk

Description

The MagicQ MQ80 is an extremely powerful console in a small size, supporting 24 universes direct from the console. The large central touch screen provides easy access to all MagicQ features and display and selection from full lighting plots.

24 Universes
10 Playback faders, 200 Pages
20 Execute buttons
202 virtual playbacks
Internal Ethernet Switch
In-built UPS
External monitor (full HD, can be touch)
Includes MIDI, Audio and Timecode input support
Free MagicVis visualiser app
Free MagicHD media player app
Designed and manufactured in the UK
MagicQ MQ80 features the same flexible lighting control, media server connectivity and in-built Pixel Mapper found in all MagicQ consoles, and uses the same software and show formats, enabling compatibility between all MagicQ products. New shows can be loaded into MagicQ consoles running older software and old shows can be loaded into newer software.

MagicQ software features include easy patching from a library of 13000 fixture personalities, simple attribute selection and programming, flexible live lighting control and a powerful inbuilt Pixel Mapper.

MagicQ MQ80 can be connected via network to a PC or Mac running ChamSys free MagicVis lighting visualisation software for full visualisation of all the universes at no extra cost.

MagicQ MQ80 can also be connected via network to a PC or Mac running ChamSys free MagicHD media player software for output of up to 8 layers of HD media at no extra cost.

MagicQ MQ80 outputs all universes direct over Ethernet using Art-Net I, II or III, Pathport, or Streaming ACN – there is no need for network nodes.

MagicQ MQ80 incorporates high reliability components, including high durability metal Neutrik Ethercon locking connectors for easy and reliable networking. As with other MagicQ consoles, the Ethernet switch is protected by the UPS, thus ensuring that both the console and the network switch maintain operation even during a power loss.

MagicQ MQ80 features an inbuilt power supply and UPS with locking Powercon connectors that accept voltages from 110V to 240V AC. The MagicQ MQ80 has a Kensington security slot for securing the product. Both soft bags and flight cases are available as optional extras.

Quick and Easy to Program
Fully Featured Theatre Stacks
Advanced Media Server Support
Fixture Morphing & Cloning
LED Pixel Mapping
Fixture Plot View including Target Focus
Powerful PC/Mac Show Editor

Fixture, FX and Gel Library
In-built Fixture Editor
Fixture morphing and cloning

Tracking / non-tracking option

Rainbow colour picker (CMY, RGB, HSI)
Individual fade times on any channel
Easy fanning of parameters and times
Configurable faders – HTP, LTP, speed, size, masters
Theatre mark cues, split fades and inhibit masters

Client/Server network architecture
Multiple console playback tracking
Multiple console programming
In-built Web Server
Remote console control
Visualiser support (including patch transfer)
Architectural Zoning and Day/Date support

In-built UPS (~5 minutes)
