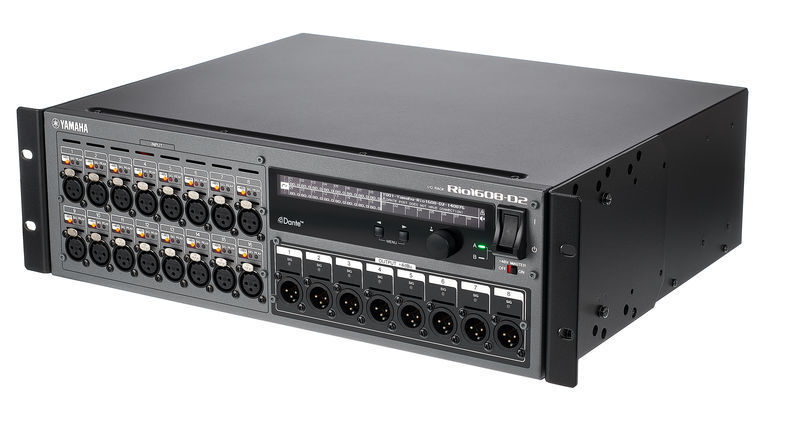

Yamaha RIO1608-D2 Digital 19″ Stagebox

Description

Rio1608-D2 I/O Rack
this product needs to be integrated into a system. Please consult Yamaha or one of our authorised system integrators to get a quote.
This high-performance I/O rack features 16 analog inputs and 8 analog outputs, and is compatible with Yamaha CL and QL series consoles as well as the RIVAGE PM series. The Rio1608-D2 connects directly to Dante digital audio networks, allowing flexible system configuration. Dual power supply units are built in for high reliability, and a character/graphic display offers easy visual confirmation.

16 analog inputs and 8 outputs.
Redundant connections are supported with primary and secondary connectors. Daisy chain connections are also supported.
Comprehensive display and local control of gain and other parameters.
Dual power supply units are built in for high reliability.
Power consumption: 72W
Dimensions (WxHxD): 480 x 132 x 368mm (18.9″ x 5.2″ x 14.5″)
Net Weight: 9.6 kg (21.2 lbs)

16 Inputs
8 Outputs
100-240V
Frequency range: 20 – 20,000 Hz
Dynamic Range: 112 dB
Input noise: -128 dBu
Output noise: -88 dBu
Crosstalk -100 dB INPUT / OUTPUT channels
Input gain: -6 dB @ 1kHz
Dimensions (W x H x D): 480 x 132 x 368 mm
Format: 19 “/ 3 HE
