Shure UR1 K4E Bodypack

Description

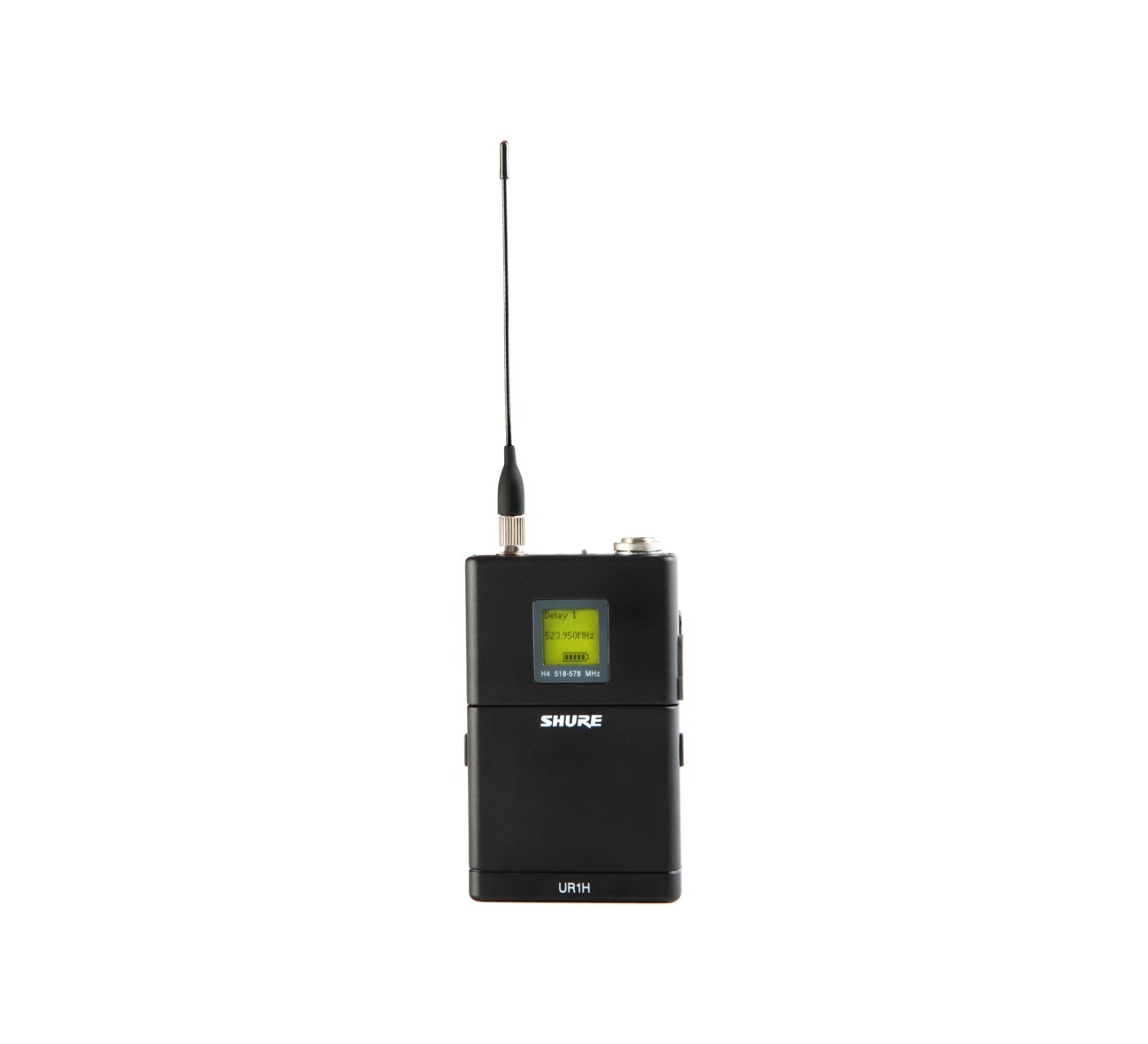

Lightweight and discreet UHF-R Bodypack Transmitter with TA4M or Lemo-3 connector options.

Switchable RF Power (10/50mW or 10/100mW, Region Dependent)
Low Profile, Compact Design
Frequency and Power Lockout
Bit-mapped Backlit LCD Display
2 AA Batteries – Up to 8 hours Continuous Use
Automatic Transmitter Setup
Durable, Light-weight Magnesium Construction
Removable Bodypack Antenna

The wireless bodypack transmitter shall operate in the UHF band and shall provide a tone key (32,768 kHz) to increase reliability and to minimize unwanted noise. The system shall allow to change the operating frequency in 25 kHz steps in order to avoid RF interference, enabling up to 47 systems to operate simultaneously in one frequency band. Preconfigured group, channel and frequency setups shall be available to ensure that multiple systems in use do not interfere with one another.
The transmitter shall be programmable through a menu as well as infrared synchronisation. The transmitter shall provide a threaded connector to securely lock microphones or instrument cables. The backlit LC display shall show name, battery gauge, carrier frequency, as well as gain and sensitivity settings. The LCD menu controls should cover separately adjustable gain (-10 to +20 dB) and input sensitivity (attenuation pad: +15, 0, -10 dB), tunable carrier frequency, switchable RF power, frequency and power lock as well as the access to the RF Safety Mode (transmitter operation with muted RF carrier).

Systems are in Band K4E, covering the frequency range 606 – 666 MHz (Channels 38 – 45) and can operate on up to 10 simultaneous frequencies in Channel 38 without intermodulation. Additional systems may require a Fixed Site License which can be obtained from OFCOM.
