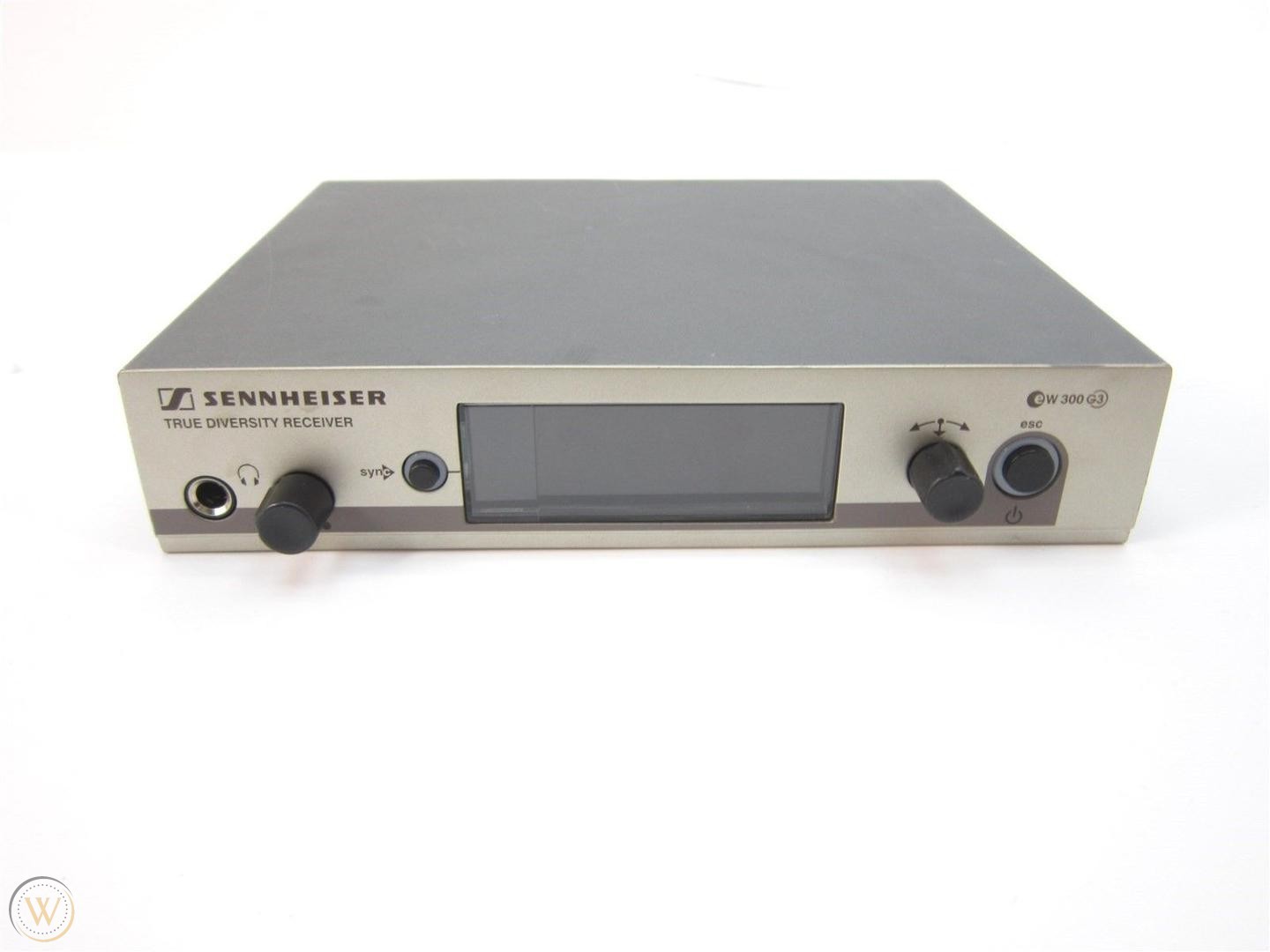

Sennheiser ew300 G3 True Diversity Receiver

Description

Sennheiser understands that the more self-reliant a device is, the more artistic freedom there is to enjoy. With this in mind, this new receiver has a built-in Ethernet port for remote PC monitoring and setup with Sennheiser’s Wireless System Manager software. This receiver’s wireless sync function makes it a breeze to link up any G3 transmitter with the unit. In addition, it has a large backlit graphic display where receiver and transmitter information can be easily seen even on the darkest of stages.

Technical Data
Frequency range
606…648 MHz
823…865 MHz / Power supply unit UK
823…865 MHz / Power supply unit EU / Germany
823…865 MHz / Power supply unit EU
780…822 MHz / Power supply unit UK
780…822 MHz / Power supply unit EU / Germany
780…822 MHz / Power supply unit EU
734…776 MHz / Power supply unit US
734…776 MHz / Power supply unit EU
626…668 MHz / Power supply unit US
626…668 MHz / Power supply unit EU
566…608 MHz / Power supply unit US
566…608 MHz / Power supply unit EU
516…558 MHz / Power supply unit EU
Frequency band
516…558 MHz / Power supply unit US
Dimensions
212 x 202 x 43 mm
Frequency response (Microphone)
25…..18000 Hz
Compander
HDX
Audio-XLR connector
XLR / 6,3 mm jack
Presets
max 24
THD, total harmonic distortion
115 dB(A)
RF frequency range
516….. 865 MHz
Transmission/receiving frequencies
1680
Switching bandwidth
42 MHz
Peak deviation
+/- 48 kHz
In compliance with
ETS 300422 , ETS 300445 , CE , FCC
Antenna connector
2 BNC, 50 Ohm
Audio output level (balanced)
XLR: +18 dBu max
Audio output level (unbalanced)
Jack: +12 dBu max
