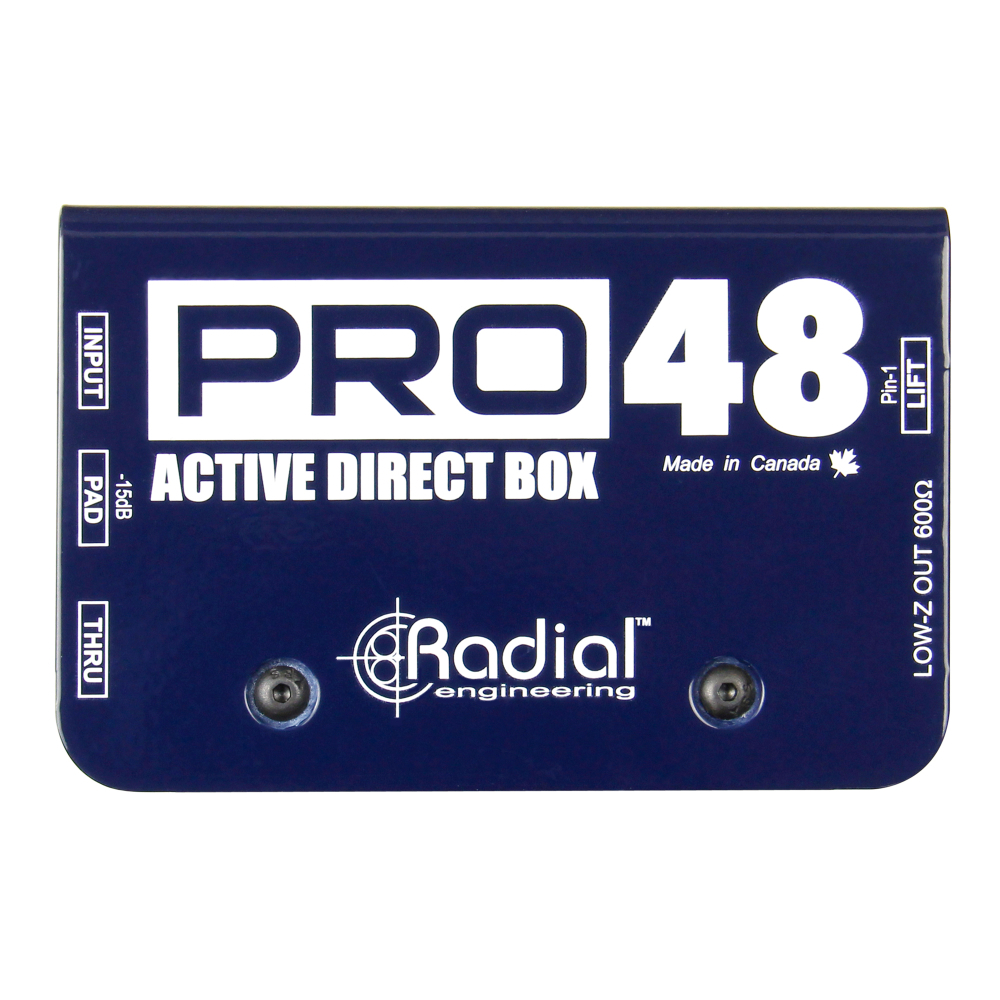

Radial Engineering Pro 48 Active DI Box

Description

Active DI Box

Jack in/thru
XLR out
– 15 dB pad
Ground/lift
Operates with 48V phantom power

Exceptional sonic performance

The Pro48’s innovative internal switching power supply significantly increases headroom producing less distortion while yielding a smooth, linear response that extends from 20Hz to well above 40kHz. This results in natural, uncolored signal that is as good or better than DI boxes costing several times more. The superior performance makes the Pro48 an ideal candidate for use with battery powered active basses and acoustic guitars that tend to overload other direct boxes.

Specifications
Audio circuit type: Proprietary analog circuit with low-noise op-amp
Frequency response: 20Hz ~ 20kHz (± 1.5 dB
Dynamic range: 99dB
Total harmonic distortion: 0.001% @ 0 dBu
Intermodulation Distortion: 0.002% @ 0 dBu
Phase Deviation: +28º at 20Hz | +1º at 1kHz | -2º at 20kHz
Input Impedance: 220kΩ – ¼” input
Output Impedance: 175Ω – XLR output
Equivalent Input Noise: -86dBu
Noise Floor: -82dB below 0dBu
Maximum Input: +9dBu
Features
Input pad, Ground lift
General
Construction: 14-gauge steel
Size (L x W x D): 4.25″ x 2.75″ x 1.75″ (108 x 70 x 44mm)
Weight: 1.2 lb (0.54kg)
Power: 48V phantom – proprietary digital switching
Conditions: For use in dry locations only between 5°C and 40°C
Warranty: Radial 3-year, transferable
