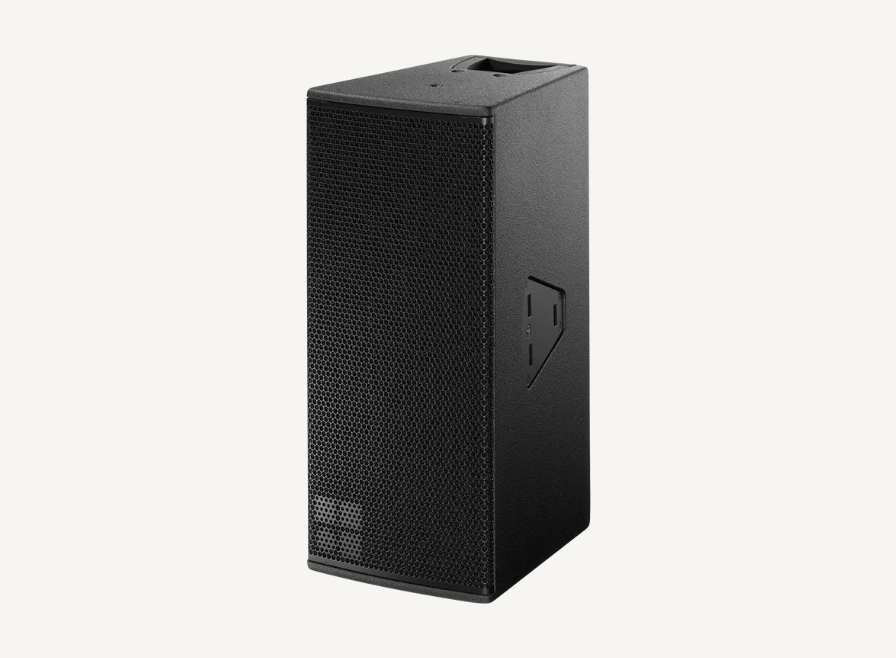

d&b audiotechnik Y10P loudspeaker

Description

Introducing the Y10P loudspeaker, a high-performance, 2-way passive speaker that delivers a full and extended sound. With a compact and durable design.

This speaker features two 8″” drivers in a dipole arrangement, paired with a 1.4″” compression driver mounted onto a rotatable CD horn. Its advanced bass-reflex port design and sophisticated horn geometry allow for a broad bandwidth and an extended low-frequency output.

With a 110° horizontal directivity and 40° vertical dispersion, this loudspeaker provides a flexible deployment option, whether used as a stand-alone full-range system or combined with other elements from the Y-Series. Its marine plywood construction and impact and weather-protected Polyurea Cabinet Protection (PCP) finish providing durability and protection, making it perfect for indoor and outdoor use.

The Y10P also comes with a pair of handles for easy portability, as well as M10 threaded inserts for attaching d&b rigging hardware. Two additional M10 sockets accept the 8mm load pin to expand the mounting options.

Frequency response (-5 dB standard)59 Hz – 18 kHz
Frequency response (-5 dB CUT mode)118 Hz – 18 kHz

Maximum sound pressure: 1
with 10D: 131 dB
with D20/30D: 134 dB
with D40/D80/40D: 136 dB

Cabinets per amplifier channel2

Configuration High performance 2-way passive point source loudspeaker
Nominal impedance: 8 Ω

Power handling capacity: (RMS/peak 10 ms)400/1600 W

Nominal dispersion angle (h x v)110° x 40°

Components2 x 8″” driver with neodymium magnet

1.4″” exit compression driver
passive crossover network
Connections2 x NLT4 F/M

Dimensions (H x W x D)
580 x 257 x 341 mm / 22.8 x 10 x 13.4″”
Weight18 kg / 40 lb”
