d&b audiotechnik Y Series Subwoofer

Description

Subwoofers

High performance flyable cardioid subwoofer

Components 18″/12″
Dispersion Cardioid
SPLmax 134 dB

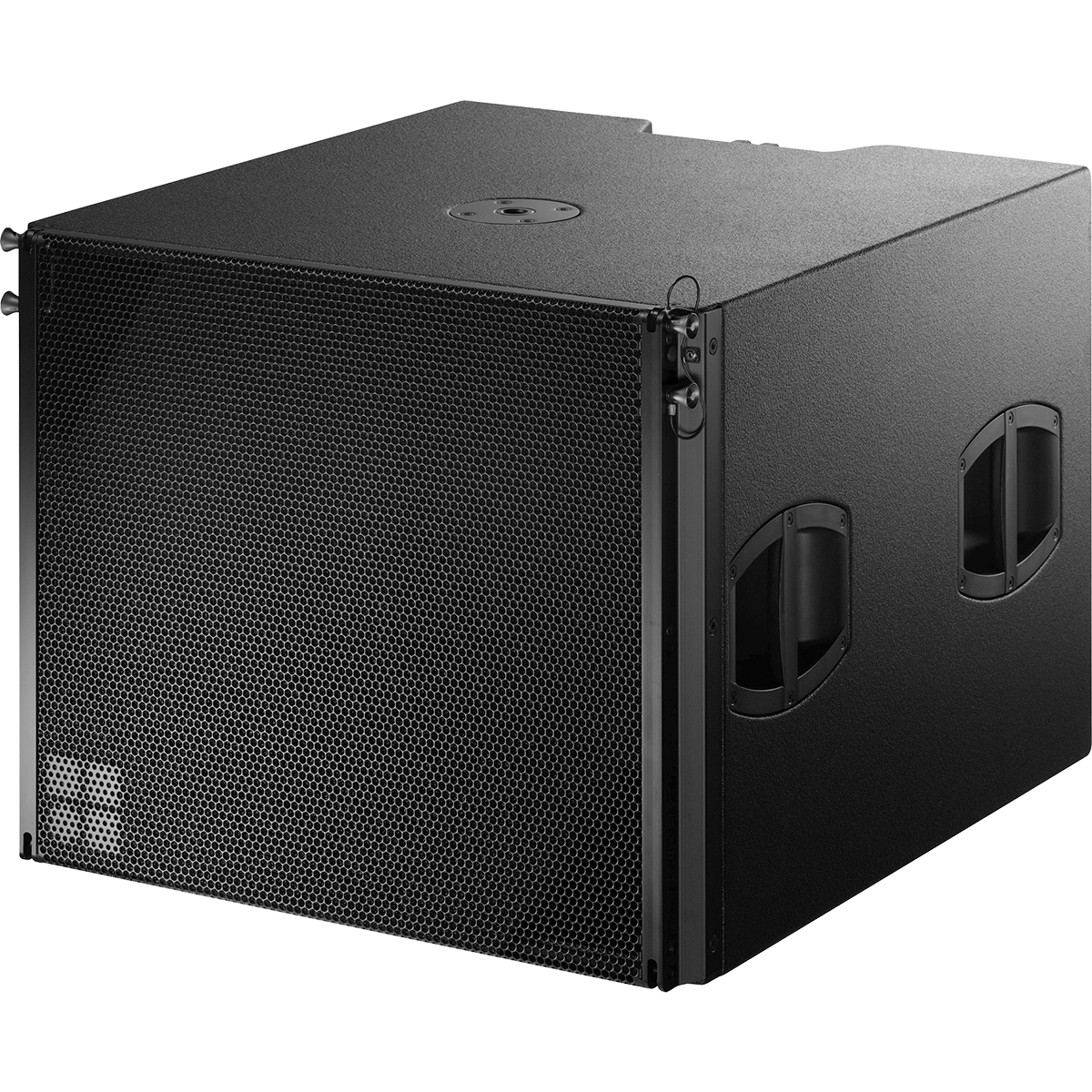

The Y-SUB is an actively driven cardioid subwoofer powered by a single amplifier channel. It houses two long excursion neodymium drivers in an integrated cardioid setup, an 18” driver in a bass-reflex chamber facing to the front and a 12” driver in a two chamber bandpass design radiating towards the rear. The cardioid dispersion pattern resulting from this arrangement avoids the distribution of energy behind the system, providing the greatest accuracy of low frequency reproduction and reducing the energy dispersed into unwanted areas. The Y-SUB is fitted with three point rigging hardware and can be flown in a column of purely Y subwoofers, at the top of a Y array or used in a ground stacked setup. The cabinet is constructed from marine plywood and has an impact and weather protected PCP (Polyurea Cabinet Protection) finish. The front of the loudspeaker cabinet is protected by a rigid metal grill backed by an acoustically transparent foam, whilst the side panels incorporate two handles with four wheels mounted to the rear. An optional transport lid protects the front of the subwoofer during transit.

Amplifiers

The d&b D80 amplifier is recommended to drive the Y-SUB. The d&b D20 and 30D can also be used.
