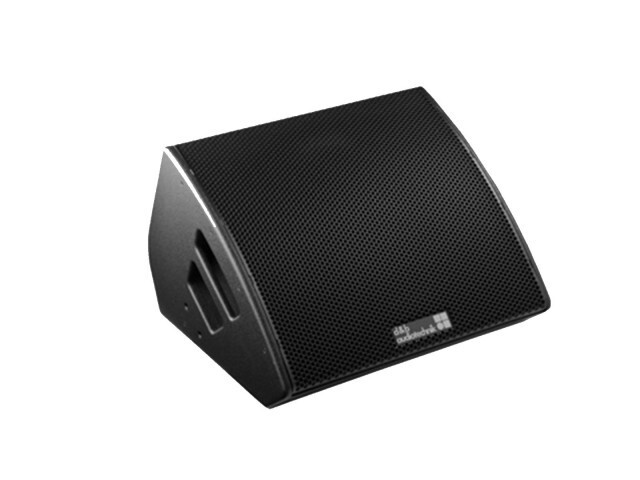

d&b audiotechnik M4 Wedge Monitor

Description

ONE OR 2 CHANNELS PER BOX – CAN RUN OFF D6, D20, D40 + D80

Stage Monitors

2-way stage monitor

Components 15″/1.3″
Dispersion 50° x 70° rotatable
SPLmax 140 dB
Weight 20 kg / 44 lb

Product description
The M4 is a 2-way high performance stage monitor employing an integrated 15” LF and 1.3” exit horn loaded HF coaxial driver design that utilizes neodymium magnets. The constant directivity dispersion of 50° x 70° (h x v), which this unique horn provides, delivers an accurately defined coverage area on stage. The M4 can also be operated in 2-Way Active mode. When the cabinet is used in an upright position the M4 serves as a powerful PA loudspeaker with a 70° x 50° dispersion suitable for a variety of applications. For dedicated installation applications the dispersion characteristics of the M4 driver assembly can be rotated in 45° increments. The M4 cabinet is constructed from marine plywood, which incorporates the handles, has an impact resistant paint finish, M10 threaded inserts and a socket to accept loudspeaker stands. The front of the loudspeaker cabinet is protected by a rigid metal grill backed with an acoustically transparent foam. Two runners recessed in the bottom panel protect the cabinet from scratching and prevents movement.

Amplifiers
The M4 monitor can be driven in passive mode, requiring one amplifier channel.
Alternatively, for increased headroom, the M4 can be driven in 2-Way active mode, using two channels.
The following amplifiers can be used to drive the M4.
