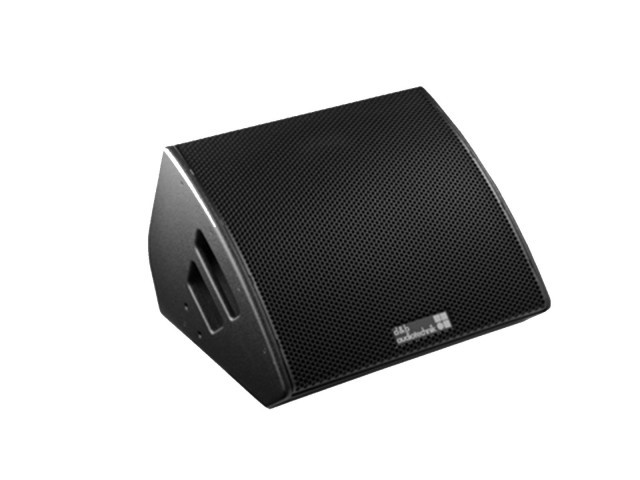

d&b audiotechnik M2 Wedge Monitor

Description

2x 12″ +1.4″ wedge monitor
High performance 2-way stage monitor

System data
Frequency response (-5 dB standard)50 Hz – 17 kHz1
Max. sound pressure2
with 30D – 143 dB
with D80 – 143 dB
Cabinets per D80 – 4
Loudspeaker data
Configuration – 2-way stage monitor
Nominal impedance LOW/HIGH4/8 Ω
Power handling capacity LOW
(RMS/peak 10 ms)500/2000 W
Power handling capacity HIGH
(RMS/peak 10 ms)50/200 W
Nominal dispersion angle (h x v)45° x 60°3
Components2 x 12″ LF driver with neodymium magnet
1.4″ exit compression driver with CD horn
Connections2 x NLT4 F/M
optional 2 x EP5 or 2 x NL8
Dimensions / weight
Dimensions (H x W x D)419 x 680 x 560 mm4
16.5 x 26.77 x 22.5″

Components 2 x 12″/1.4″
Dispersion 45° x 60°
SPLmax 143 dB
